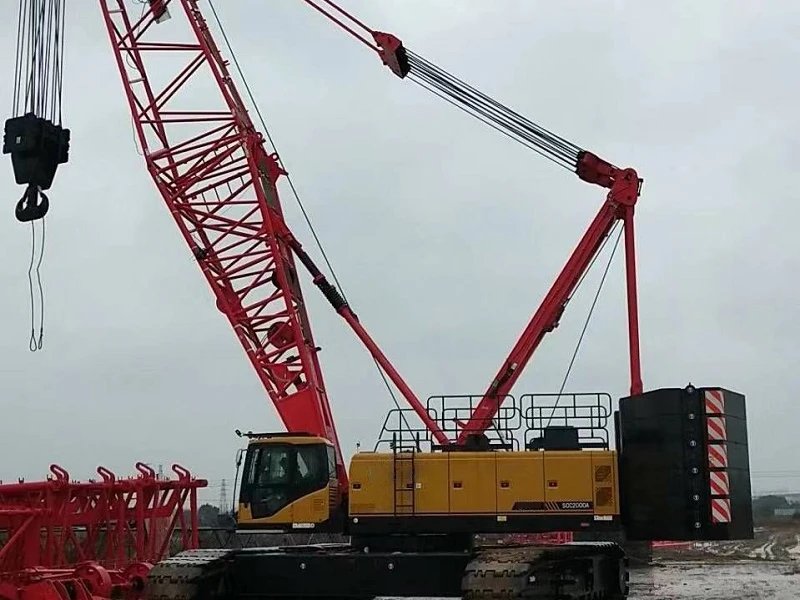

150t Crawler Crane QUY150 ZCC1500V Hydraulic Sale
Product Introduction
New 150t Crawler Crane QUY150 ZCC1500V, a 150 Ton Hydraulic Crawler Crane available for sale, ideal for heavy lifting operations with reliable performance.
Product Parameters
| Model | QUY150 ZCC1500V |
| Capacity | 150 Ton |
| Type | Hydraulic Crawler Crane |
New 150t Crawler Crane QUY150 ZCC1500V 150 Ton Hydraulic Crawler Crane for Sale
Experience unrivaled lifting performance with the ZCC1500V 150-ton hydraulic crawler crane. Engineered for heavy-duty construction, mining, and infrastructure projects, this crane combines power, precision, and reliability to tackle the most demanding job sites. With a maximum lifting capacity of 150t and a lifting height of 95m, it delivers industry-leading performance to enhance your operational efficiency.
Core Specifications
| Parameter | Value |
|---|---|
| Model | ZCC1500V |
| Max. Lifting Capacity | 150 t |
| Max. Lifting Height | 95 m |
| Max. Lifting Moment | 906.5 t.m |
| Main Boom Length | 19~76 m |
| Engine Power | 247 kW/2000 r/min |
| Counterweight | 51.4 t |
| Max. Travel Speed | 1.1 km/h |
| Max. Hoist Rope Speed | 140 m/min (main winch) |
| Transport Dimension/Weight | 12.46¡Á3.0¡Á3.27 m / 35t |
Key Features & Benefits
- High Lifting Performance: Equipped with 51.4t rear counterweight and 16t body weight, delivering lifting capabilities comparable to industry leaders.
- Powerful Engine: Weichai WP10 series engine ensures strong power output with low maintenance costs and reliable after-sales support.
- Enhanced Safety: Dual tension sensors on the force limiter improve load measurement accuracy and eliminate risks from abnormal data.
- Optimal Transportability: 35t max transport weight and 3.0m width for easy transportation; self-dismounting cylinder enables quick assembly (¡Ü6 hours).
- Operator Comfort: 1250mm ultra-wide control room with excellent visibility and low noise/vibration for long-hour operations.
Applications
Ideal for large-scale construction, bridge building, wind power installation, mining operations, and industrial plant construction. Its 30% gradeability and robust undercarriage ensure stability on rough terrains, making it suitable for both urban and remote job sites.
Quality Assurance
Manufactured by Maxizm Construction Machinery (Qingdao) Co., Ltd., a trusted name in construction equipment. The crane undergoes rigorous testing to meet international quality standards, ensuring durability and long service life. Backed by professional technical support and global parts supply.
Why Choose ZCC1500V?
Compared to competitors, the ZCC1500V offers superior lifting moment (906.5 t.m), faster hoist speed (140 m/min), and optimized transport dimensions. Its fuel-efficient engine and low maintenance design reduce operational costs, while the spacious control room enhances operator productivity.
FAQ
- What is the maximum boom length? 76m (main boom).
- Does it include a hook? Yes, the basic boom deadweight (141t) includes the hook.
- What is the fuel tank capacity? 700L for extended operation between refuels.
- Is training available? Yes, we provide operational training and technical documentation.
Ready to elevate your project efficiency? Contact our sales manager Serena Guo at Serena@maxizm.com or via WhatsApp/Wechat: +86 15806578872 for a personalized quote and technical details.
