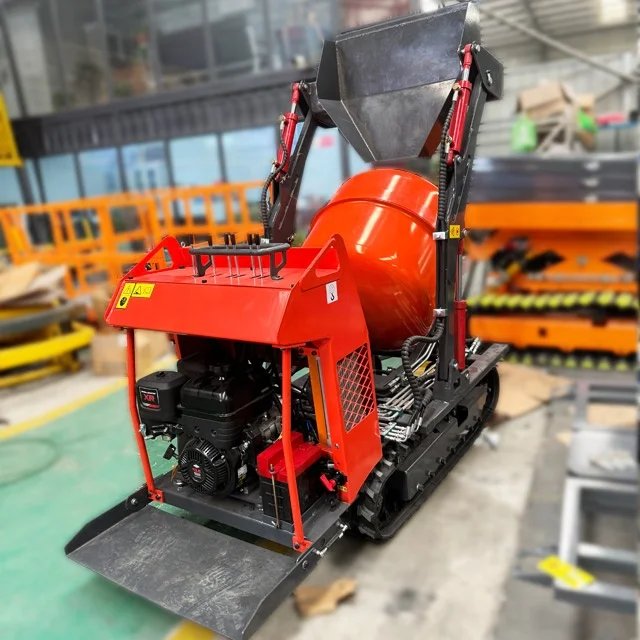

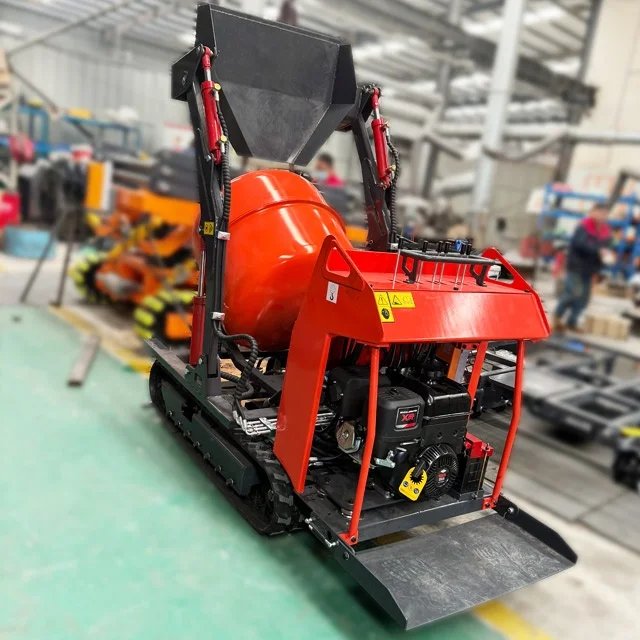

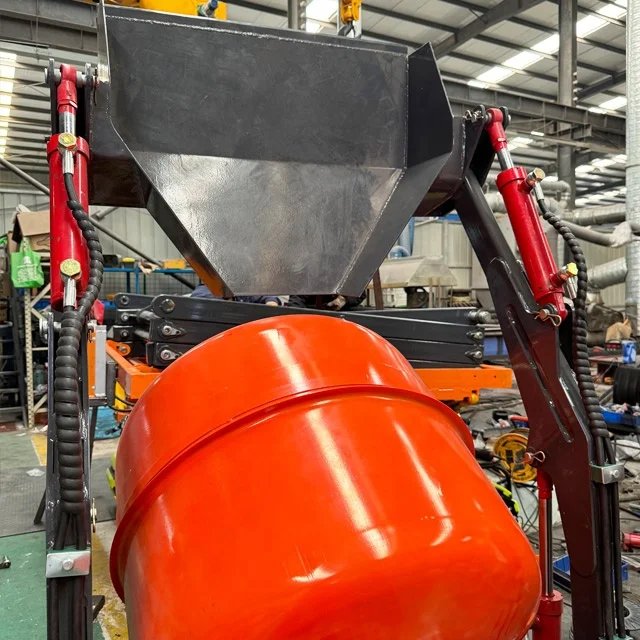

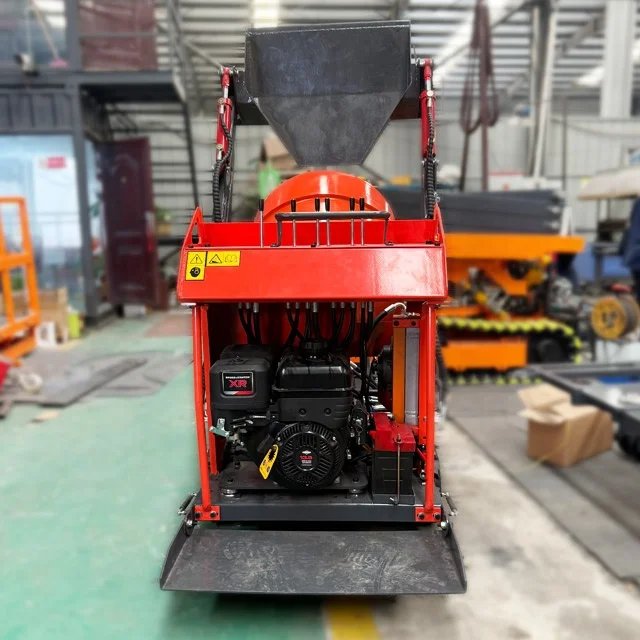

Concrete Mixer Diesel Crawler Self Loading Truck
Product Introduction
Portable Diesel Crawler Self Loading Concrete Mixer Truck, ideal for construction sites with its self-loading function and crawler design, ensuring easy movement and efficient concrete mixing.
Product Parameters
| Model | HH-300 / HH-400 / HH-800 |
| Drum Capacity | 0.28m3 / 0.4m3 / 0.8m3 |
| Engine | Koop/Changchai/B&S.Rato |
| Rated Power | 10Kw-15Kw (13.5Hp) |
| Weight | 300kg / 600kg / 820kg |
Concrete Mixer Portable Diesel Crawler Self Loading Truck – Your Ultimate Construction Solution
Introducing our high-performance Concrete Mixer Portable Diesel Crawler Self Loading Truck, designed to revolutionize your construction projects. This robust machine combines portability with powerful functionality, making it ideal for both small-scale renovations and large construction sites. With its self-loading capability and crawler tracks, it navigates rough terrain effortlessly, ensuring efficient concrete mixing and transportation wherever you need it.
Core Specifications
| Model | HH-300 | HH-400 | HH-800 |
|---|---|---|---|
| Drum Capacity | 0.28m3 | 0.4m3 | 0.8m3 |
| Engine | Koop/Changchai | Koop/Changchai | Koop/B&S.Rato |
| Rated Power | 10Kw/13.5 Hp | 10Kw/13.5 Hp | 15Kw/13.5 Hp |
| Weight | 300kg | 600kg | 820kg |
| Actual Load | 500kg | 800kg | 800kg |
| Speed | 3.5km/h (2.18mile/h) | ||
| System Pressure | 16MPa/160bar=2320psi | 16MPa | |
| System Flow | 40L/min | 60L/min | |
| Hydraulic Oil Tank | 19.4L | 30L | |
| Fuel Tank | 5.5L | ||
Key Features & Benefits
? Self-Loading Efficiency: Eliminates manual loading, saving time and labor costs.
? Crawler Tracks: Superior traction on uneven ground, perfect for construction sites.
? Powerful Diesel Engine: Reliable performance with multiple engine options.
? Compact Design: Easy to maneuver in tight spaces without compromising capacity.
? High Pressure Hydraulics: Ensures smooth mixing and consistent concrete quality.
Applications
Ideal for road construction, building projects, agricultural facilities, and infrastructure development. Whether you’re working on a remote site or urban area, this mixer truck adapts to various environments, delivering fresh concrete exactly where you need it.
Quality Assurance
As a high-tech enterprise with over 15 years of experience, we ensure every machine undergoes 100% testing before delivery. Our one-year warranty or 2000-hour guarantee, along with free parts supply during warranty, provides peace of mind for your investment.
Why Choose Us?
Unlike standard mixers, our self-loading crawler design offers unmatched mobility and versatility. We control production from parts manufacturing to assembly, ensuring superior quality at competitive prices. Our focus on customer benefit and long-term partnerships makes us your trusted construction equipment provider.
FAQ
Q: Is this mixer suitable for small construction sites?
A: Yes, the compact size and maneuverability make it perfect for small to medium projects.
Q: Can it handle different concrete mixes?
A: Absolutely, the adjustable drum speed and hydraulic system accommodate various mix consistencies.
Q: How easy is maintenance?
A: Designed for easy access to components, reducing downtime and maintenance costs.
Q: Does it come with operator training?
A: We provide operational guidance and support to ensure safe and efficient use.
Ready to enhance your construction efficiency? Contact us today for a personalized quote and discover how our Concrete Mixer Truck can transform your projects!
