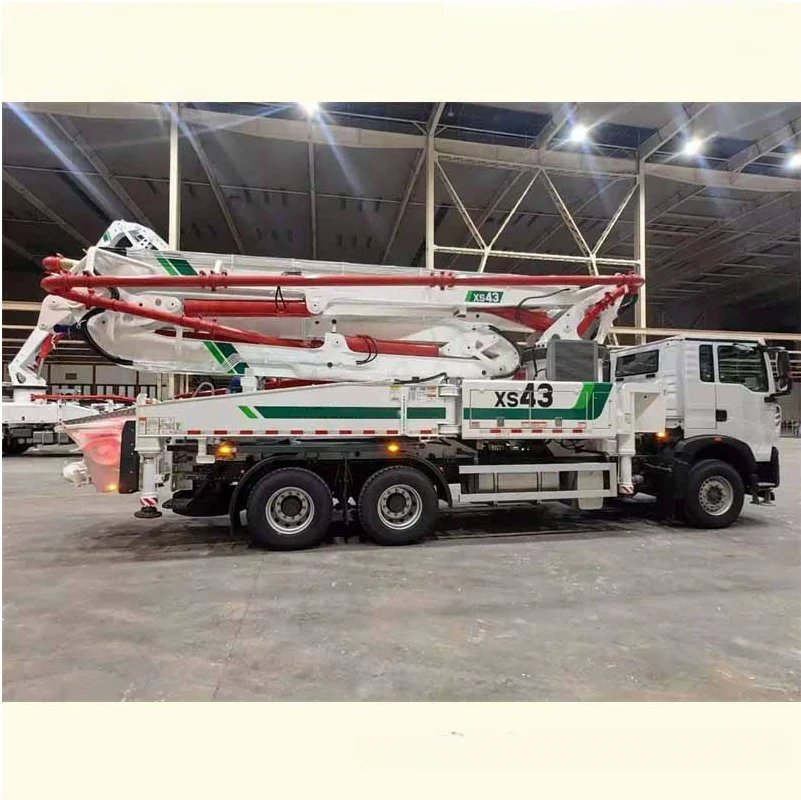

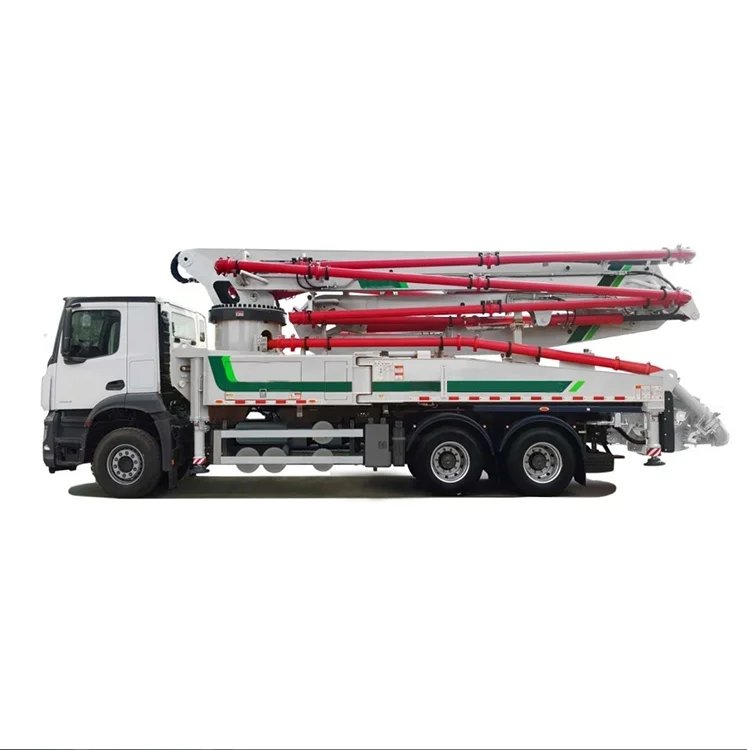

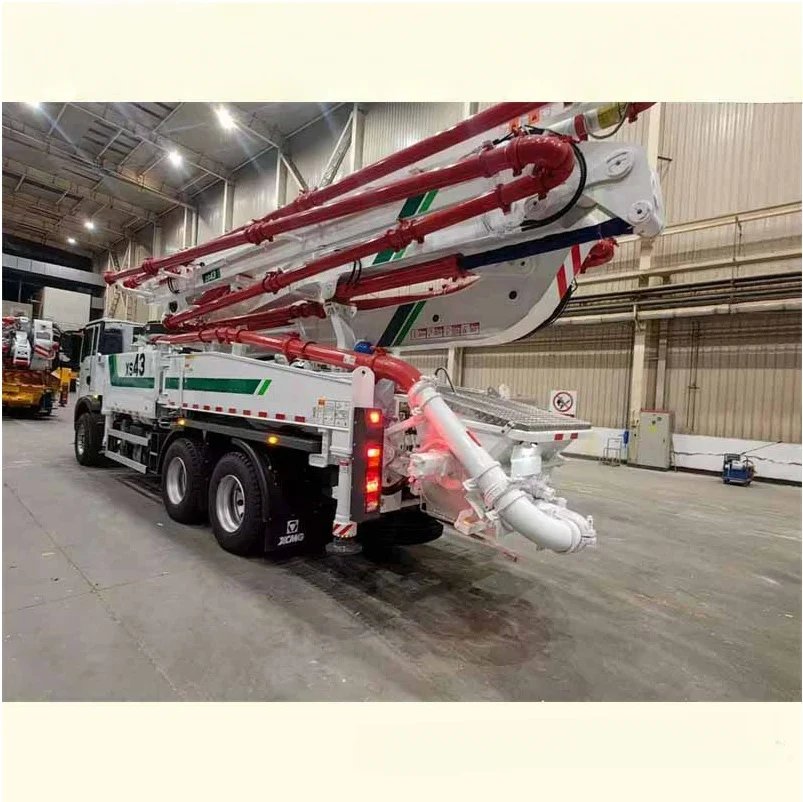

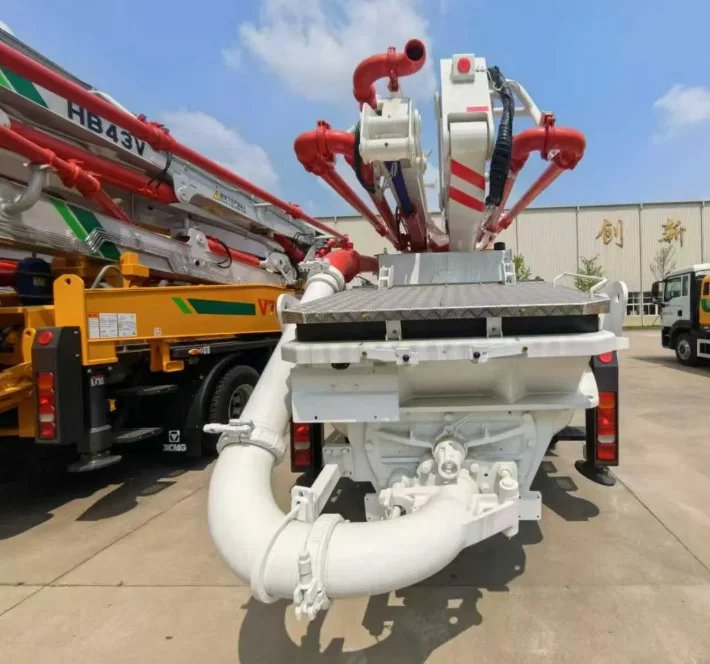

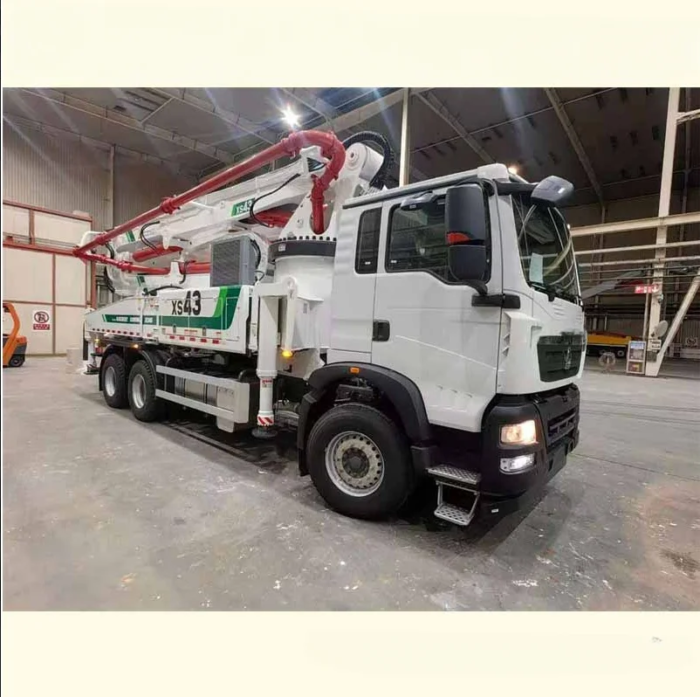

Concrete Pump Truck XS43 43m 5 Boom 170m3/h
Product Introduction
XS43 43m Concrete Pump Truck with 5-section boom, 170m3/h output, 3-axle Sinotruk HOWO chassis, and full hydraulic system. Features SCHWING TECH valve, MPS technology, and remote/manual control for efficient concrete pumping.
Key Specifications
| Theoretical Output | 170 m3/h |
| Max. Vertical Reach | 42.1 m |
| Boom Sections | 5 |
| Chassis | Sinotruk HOWO (3 Axle) |
| Engine Power | 440 HP |
XS43 43m Concrete Pump Truck – High Efficiency Construction Solution
Experience the power of the XS43 Concrete Pump Truck, designed for maximum productivity on construction sites. With a 5-section “RZ” folding boom and 170 m3/h output, this 3-axle truck delivers exceptional performance for high-rise buildings, bridges, and large-scale infrastructure projects.
Core Specifications
| Theoretical Output | 170 m3/h |
| Max Vertical Reach | 42.1 m |
| Boom Sections | 5 (RZ folding system) |
| Chassis | Sinotruk HOWO 3-axle |
| Engine Power | 440 HP |
| Hydraulic System | Open circuit with SCHWING TECH valve |
| Aggregate Capacity | ¡Ü40 mm |
| Outrigger Span | 7400-7730 mm |
| Overall Weight | 31,000 kg |
| Emission Standard | Euro III / Euro V |
Key Features & Benefits
- FEM-designed 5-section boom with 360¡ã rotation for precise concrete placement
- MPS reversing buffering technology reduces pressure shocks
- Dual control options: remote and manual operation for flexibility
- Front ARC-shaped and swing-out rear outriggers ensure stability
- Automatic piston return system for easy maintenance
- Intelligent safety systems: anti-tipping, engine overload protection
Applications
Ideal for: high-rise construction, commercial buildings, highway bridges, tunnel projects, and industrial facilities. The 43m vertical reach makes it perfect for mid-to-large scale construction sites requiring efficient concrete delivery.
Why Choose Our Concrete Pump Truck?
Our XS43 combines German-engineered SCHWING TECH hydraulics with robust Sinotruk chassis, ensuring reliability in the toughest conditions. The open hydraulic circuit and ROCK valve transfer tube minimize downtime, while the centralized lubrication system extends component life.
Quality Assurance
Every unit undergoes rigorous testing including boom fatigue tests, hydraulic system pressure checks, and overall performance validation. Backed by our global service network, we ensure prompt technical support wherever your project is located.
FAQ
What is the maximum horizontal reach? 37.3m from slewing axis center.
How long is the delivery pipeline? Standard 125mm diameter pipeline.
What maintenance is required? Regular hydraulic oil checks and centralized lubrication system inspection.
Is operator training available? Yes, comprehensive training programs for safe operation.
Ready to boost your construction efficiency? Contact us today for technical specifications, pricing, and delivery options.
