DH17 170HP Full Hydraulic Bulldozer Earthmover For Sale
Product Introduction
170HP Full Hydraulic Bulldozer DH17, equipped with WD10 engine and hydraulic components, featuring integrated positive pressure cab, intelligent touchscreen instrument, and multiple optional attachments for diverse working conditions.
Product Parameters
| Max.horse power | 95 kN |
| Machine weight | 10900¡À200 kg |
| Bucket capacity | 1.5~2.5 m3 |
| Overall dimension | 7245¡Á2482¡Á3320 mm |
| Fuel Tank | 170 L |
DH17 170HP Full Hydraulic Bulldozer: Powerful Earthmoving Solution for Industrial Projects
Engineered for heavy-duty earthmoving, the DH17 Bulldozer combines robust performance with precision control to tackle the most demanding industrial tasks. Equipped with a high-performance engine and advanced hydraulic system, this machine delivers exceptional efficiency and reliability, making it the ideal choice for construction, mining, and infrastructure projects.
Core Specifications
| Description | Value |
| Rated Horsepower | 170HP |
| Machine Weight | 10900¡À200 kg |
| Bucket Capacity | 1.5~2.5 m3 |
| Max. Breakout Force | 130 kN |
| Overall Dimensions | 7245¡Á2482¡Á3320 mm |
| Emission Standard | Emission 2 |
| Fuel Tank Capacity | 170 L |
| Hydraulic Cycle Time | 9.3 s |
| Gradeability | 28¡ã |
| Tyre Size | 17.5-25-12PR |
Key Advantages
- Golden Power Assembly: WD10 engine and hydraulic components paired with a self-developed control system ensure smooth operation, high efficiency, and fuel savings.

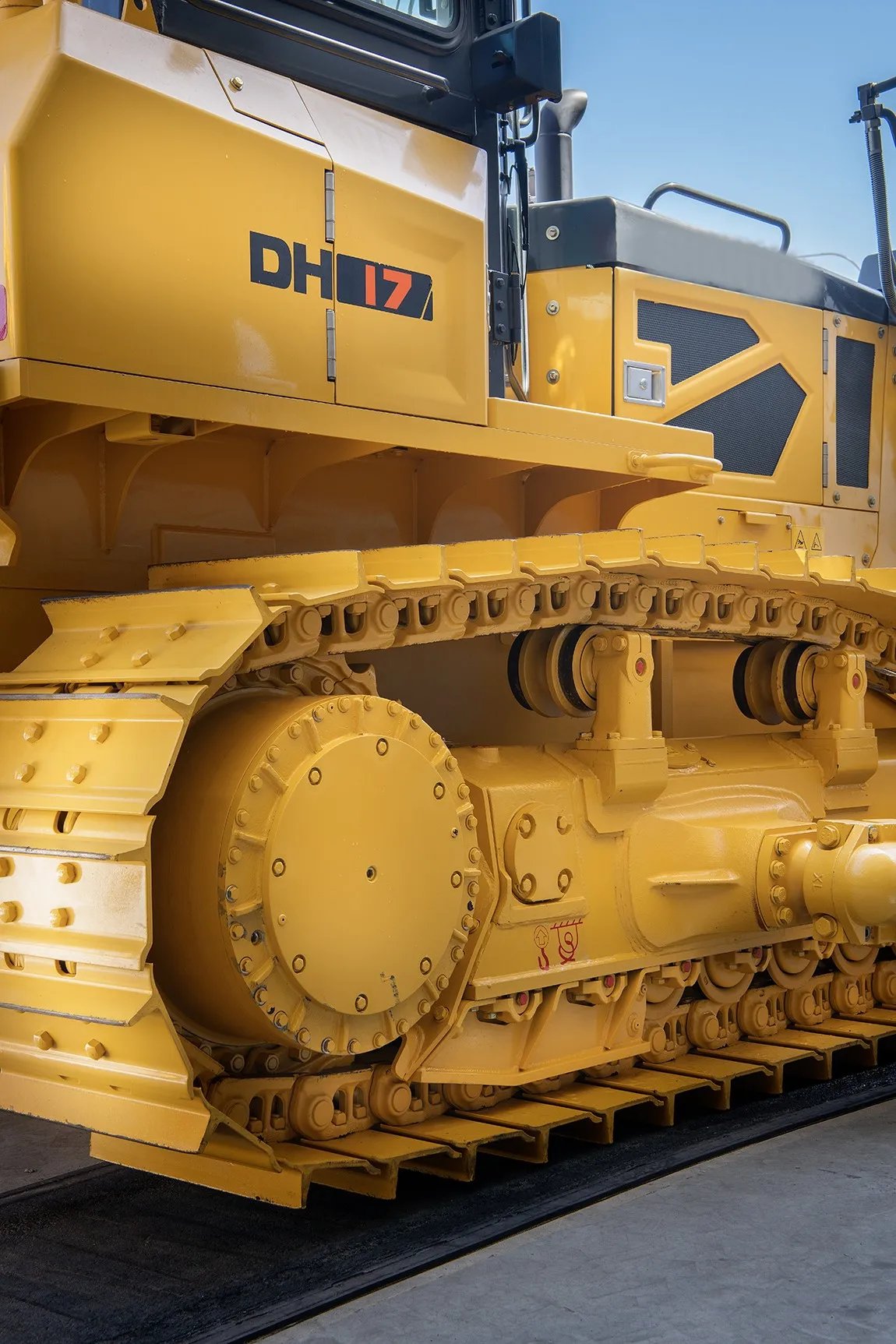

- Durable Chassis: Four-wheel-one-track system enhances service life and reliability in harsh conditions.
- Operator Comfort: Integrated positive pressure cab reduces noise, while intelligent touchscreen instruments enable easy fault diagnosis.
- Easy Maintenance: All key components (engine, hydraulics, electrical parts) are externally accessible for quick servicing.
- Versatile Attachments: Choose from straight tilt blade, semi-U blade, or three-tooth ripper to match diverse job requirements.
Applications
Ideal for earthmoving, land clearing, road construction, mining, and agricultural land preparation. Its adaptability to various terrains and optional attachments make it a versatile asset for any industrial project.
Performance Highlights
With a maximum breakout force of 130 kN and a gradeability of 28¡ã, the DH17 excels in heavy load operations. The 9.3-second total hydraulic cycle time ensures rapid work cycles, boosting productivity on-site.
Quality Assurance
Backed by a 12-month or 2000-hour warranty, covering material and workmanship defects. Compensated spare parts are available via express delivery (5-7 days) or included in future shipments at no extra cost.
Why Choose DH17?
Unlike standard bulldozers, the DH17 offers a unique combination of fuel efficiency, durability, and operator-centric design. Its self-developed control system and external maintenance points set it apart from competitors, reducing downtime and operational costs.
FAQ
Q: What attachments are available?
A: Straight tilt blade, semi-U blade, and three-tooth ripper.
Q: What is the warranty coverage?
A: 12 months or 2000 hours, excluding wear parts like filters and belts.
Q: How is maintenance performed?
A: Key components are externally located for easy access, minimizing service time.
Ready to enhance your project efficiency? Contact us today for a personalized quote and technical details!
