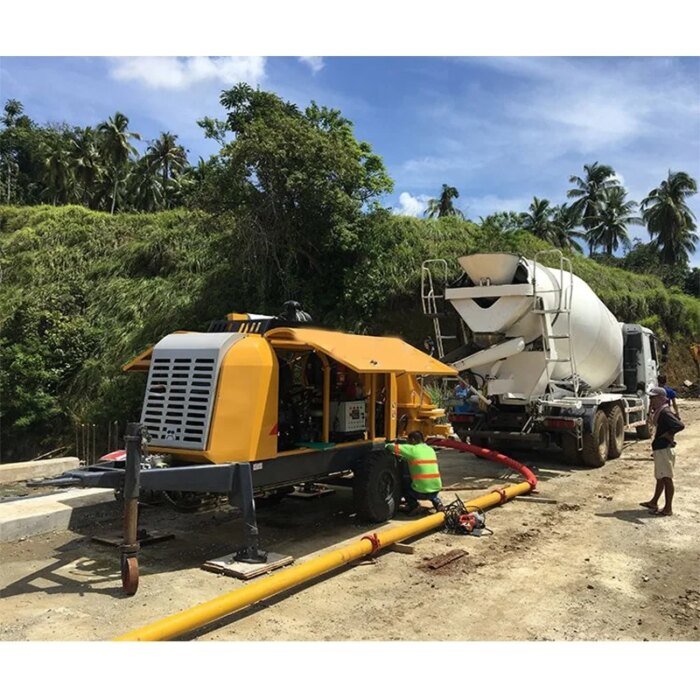

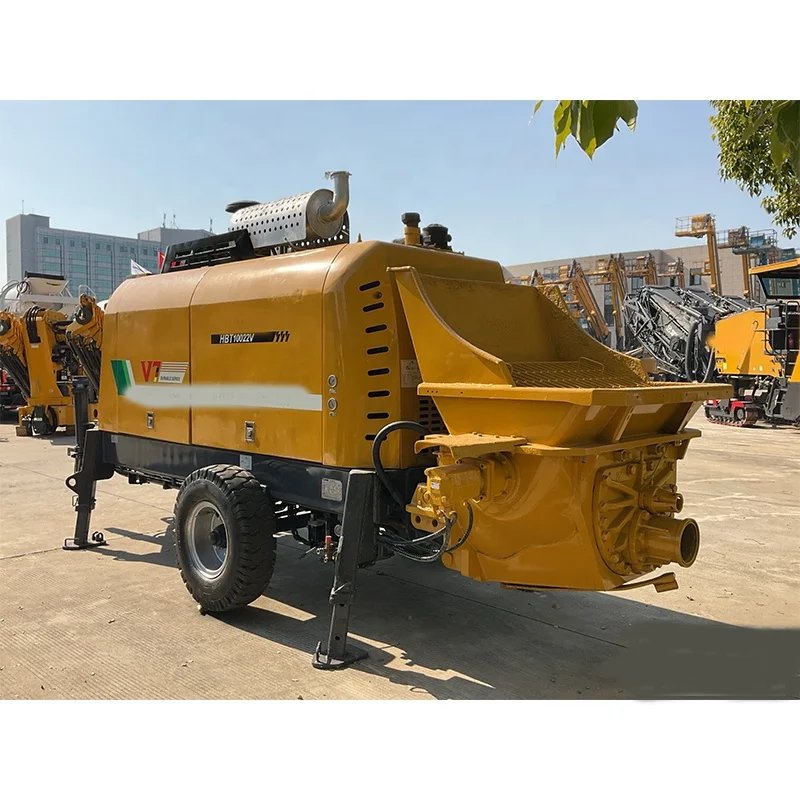

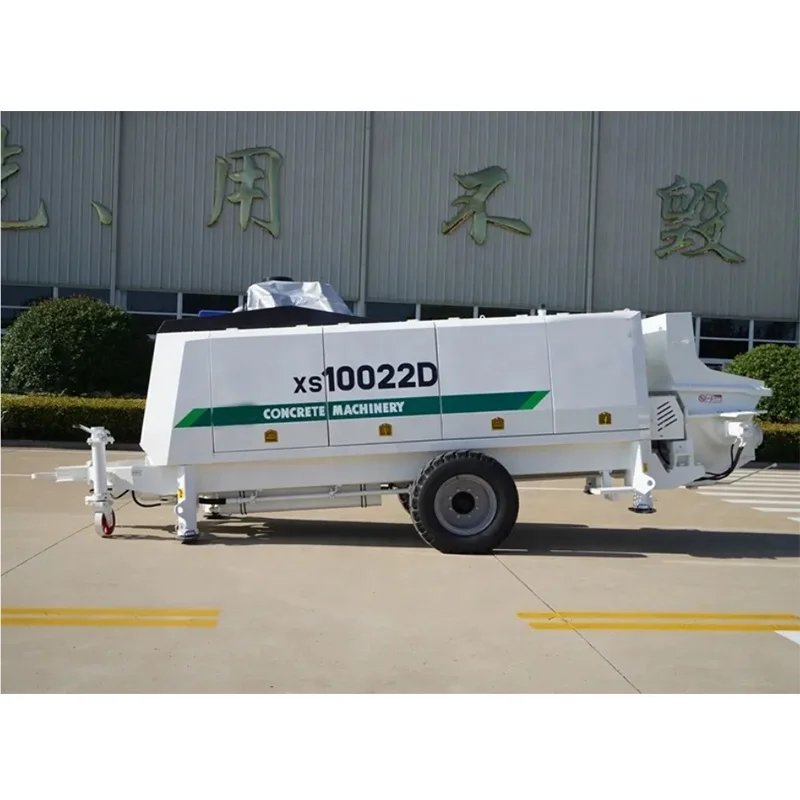

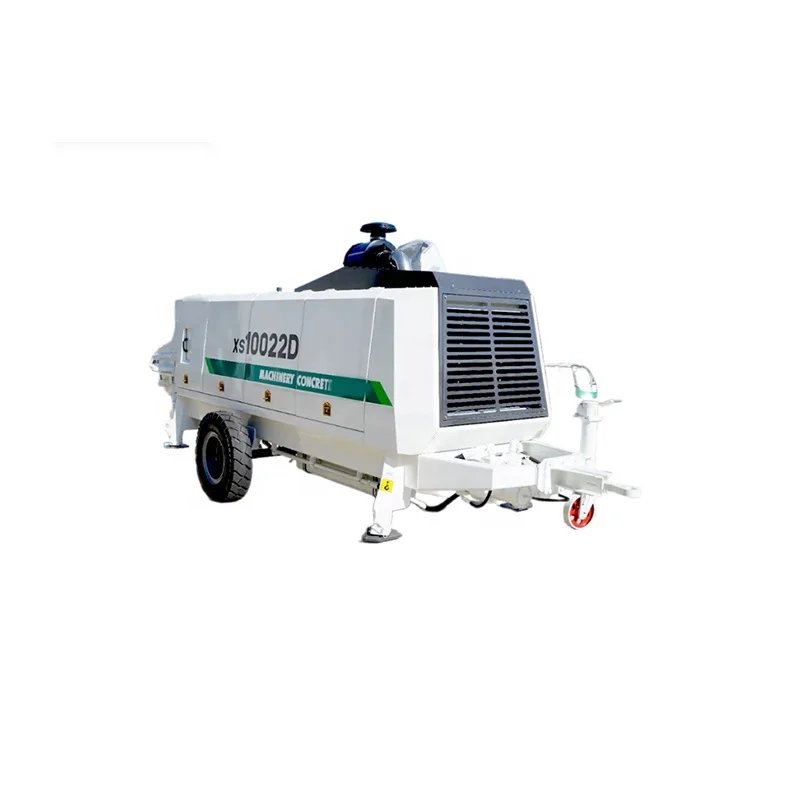

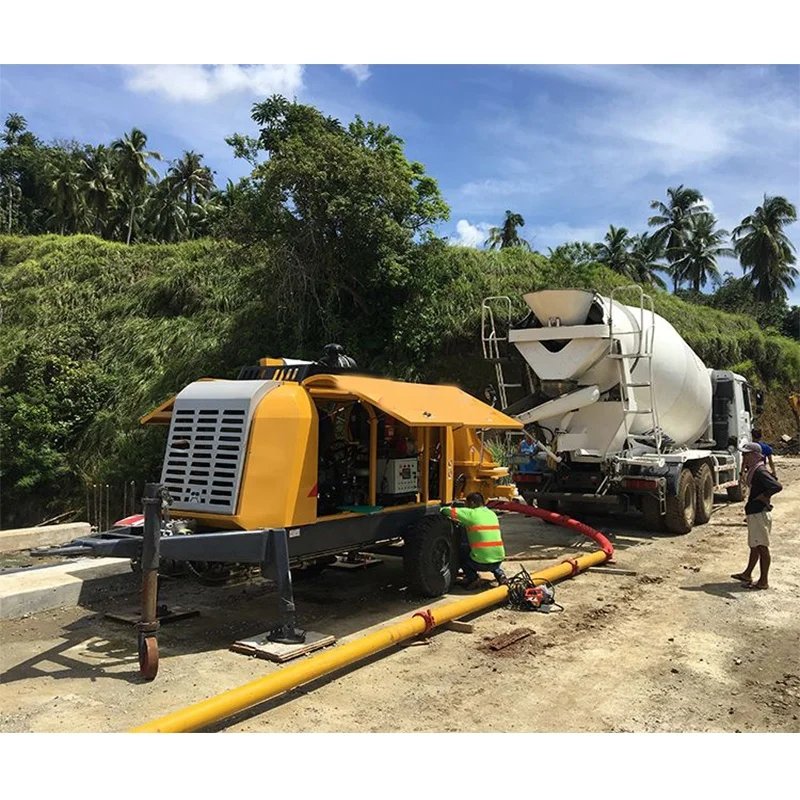

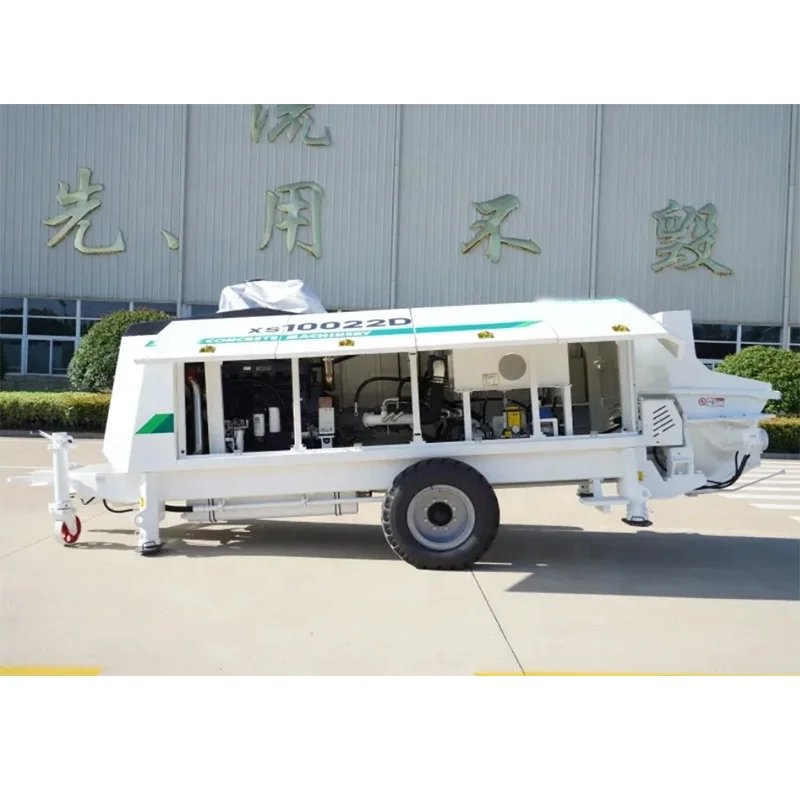

HBT10022V XS10022D 102m3/h Stationary Concrete Pump
Product Introduction
China Max stationary concrete pump XS10022D HBT10022V, ideal for construction projects with efficient concrete delivery.
Key Specifications
| Model | XS10022D HBT10022V |
| Delivery Capacity | 102m3/h |
| Type | Stationary Concrete Pump |
China Max 102m3/h Stationary Concrete Pump XS10022D HBT10022V – High-Performance Construction Solution
Maximize your construction efficiency with the China Max XS10022D/HBT10022V Stationary Concrete Pump. Engineered for reliable performance and cost-effectiveness, this pump delivers a powerful 102m3/h theoretical output, making it ideal for large-scale building projects, infrastructure development, and industrial construction. Its advanced S-valve technology ensures smooth operation with minimal maintenance, while the robust design guarantees durability even in harsh working conditions.
Core Technical Specifications
| Model | XS10022D / HBT10022V |
| Theoretical Output | 102/70 m3/h |
| Rated Power | 338 kW |
| Theoretical Pressure | 15/22 MPa |
| Engine Model | WP12G460E300 (Euro III) |
| Total Weight | 8960 kg |
| Dimensions | 7626¡Á2269¡Á2991 mm |
| Piston Diameter¡ÁStroke | ¦Õ200¡Á2100 mm |
| Valve Type | S-valve (Rock-valve optional) |
| Filtration System | Multi-stage filtration |
Key Advantages
- Efficient S-Valve Technology: Simple design reduces maintenance costs and enables optional rock-valve configuration for tough materials.
- Energy-Saving Performance: Large-diameter oil passages minimize pressure loss and reduce fuel consumption.
- Reliable Operation: Multi-stage filtration ensures clean oil flow, extending component lifespan.
- Smooth Reversing System: Minimizes directional impact, reducing wear on control valves.
- Quick Maintenance: Automatic piston return allows easy inspection and sealing element replacement.
Application Scenarios
Perfect for high-rise building construction, bridge projects, tunnel engineering, and precast concrete production. Its high pressure (22 MPa) capability makes it suitable for long-distance pumping and vertical conveying, while the dual output modes (102/70 m3/h) adapt to varying project requirements.
Performance Highlights
Equipped with a powerful WP12G460E300 engine, this pump balances high productivity with environmental compliance (Euro III emission standard). The 8960 kg robust frame ensures stability during operation, while the optional pipe configurations offer flexibility for different job site conditions.
Quality Assurance
Manufactured by Maxizm Construction Machinery (Qingdao) Co., Ltd., a trusted supplier with 17+ years of experience exporting construction equipment worldwide. Each unit undergoes rigorous testing to ensure compliance with international quality standards, backed by comprehensive after-sales support.
Why Choose This Pump?
Compared to competitors, the XS10022D/HBT10022V stands out with its combination of high output, energy efficiency, and low maintenance costs. The automatic piston return system and multi-stage filtration are unique features that reduce downtime and operational expenses.
FAQ
- What is the maximum pumping distance? Dependent on pipe diameter and concrete mix; contact us for project-specific calculations.
- Can it handle aggregate materials? Yes, with the optional rock-valve configuration for harsh aggregates.
- What maintenance is required? Regular oil checks and filter replacements; detailed manual provided with purchase.
- Is training available? Yes, our technical team offers on-site operation and maintenance training.
