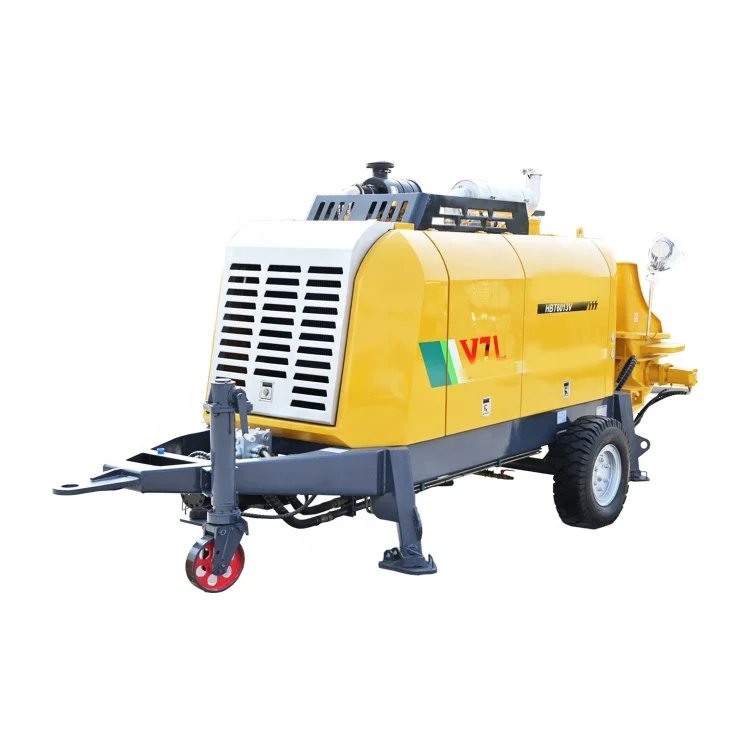

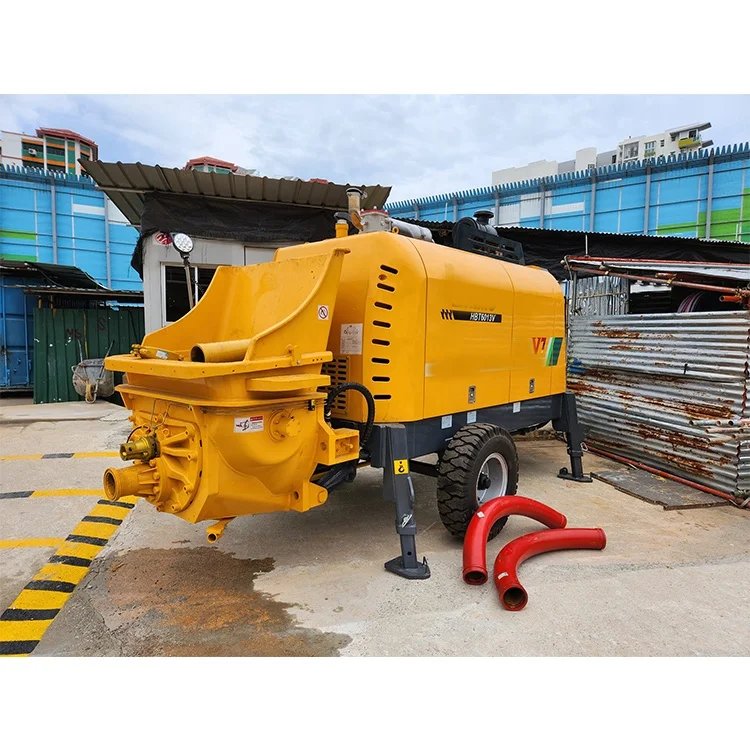

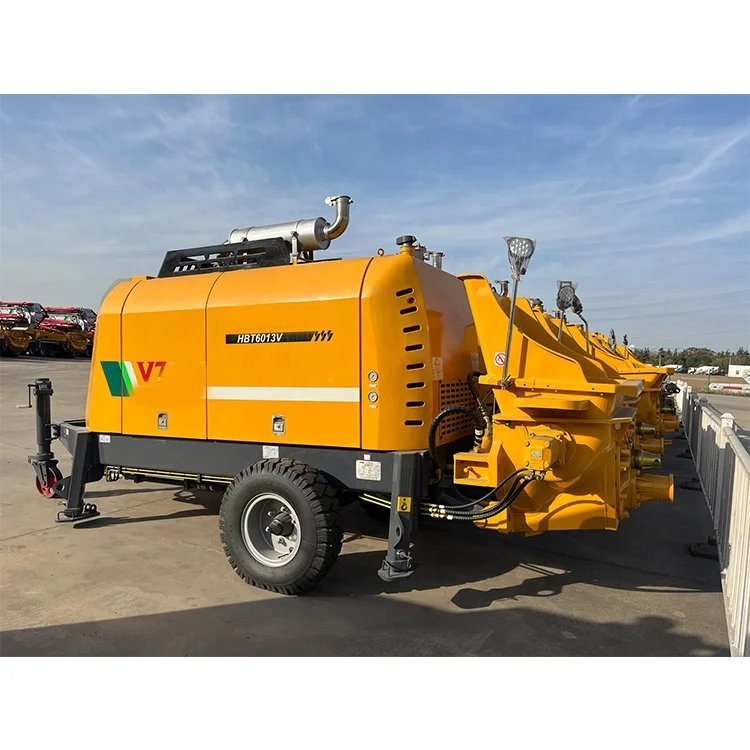

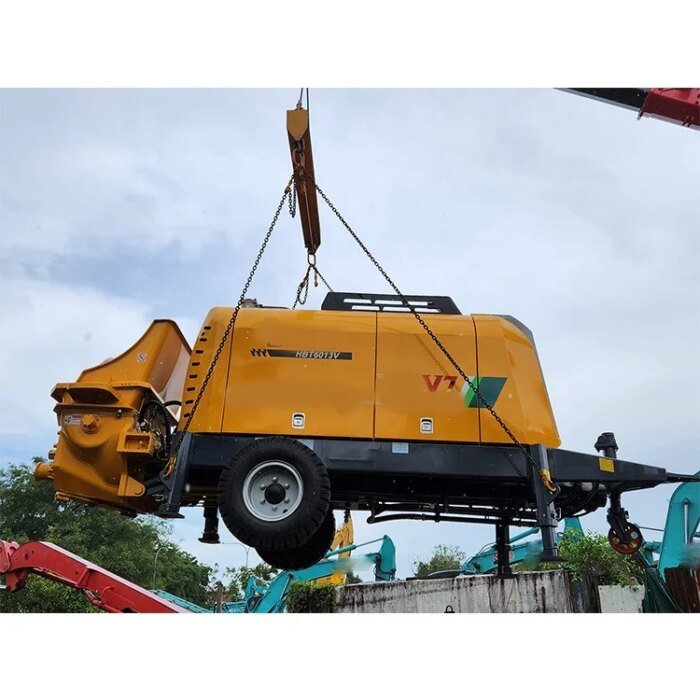

HBT6013V 60m3/h Diesel Concrete Pump Trailer 100-150m Pipe
Product Introduction
HBT6013V trailer concrete pump is a modern construction equipment with high reliability, easy maintenance and low cost, featuring efficient skirt valve pumping system and stable commutation buffer technology.
Key Parameters
| Model | HBT6013V |
| Concrete Delivery Capacity | 65/40 m3/h |
| Max Output Pressure | 13 Mpa |
| Conveying Distance (Vertical/Horizontal) | 150/600 m |
| Rated Power | 118 kw |
China New 60m3/h Diesel Concrete Pump Trailer HBT6013V – High Efficiency Construction Solution
Introducing the HBT6013V trailer concrete pump, a modern construction equipment designed for continuous concrete pouring with exceptional reliability, easy maintenance, and cost-effectiveness. Equipped with advanced technologies, this pump ensures efficient and stable performance for various construction projects.
Core Specifications
| Model | HBT6013V |
| Concrete Delivery Capacity | 65/40 m3/h |
| Maximum Output Pressure | 13 Mpa |
| Conveying Distance | 150m (vertical) / 600m (horizontal) |
| Machine Quality | 6900 kg |
| Dimensions | 6115¡Á2100¡Á2810 mm |
| Rated Power | 118 kw |
| Concrete Slump | 80-230 mm |
| Hydraulic System Pressure | 35 Mpa |
| Manufacturer (Engine) | Weichai |
Key Advantages
- Efficient skirt valve pumping system for high productivity
- Stable commutation buffer technology reduces operational noise
- Reliable full hydraulic reversing technology ensures smooth operation
- Ultra-low pressure loss hydraulic system saves energy
- Advanced energy-saving control technology reduces fuel consumption
- Safer and smarter electrical control with user-friendly interface
Applications

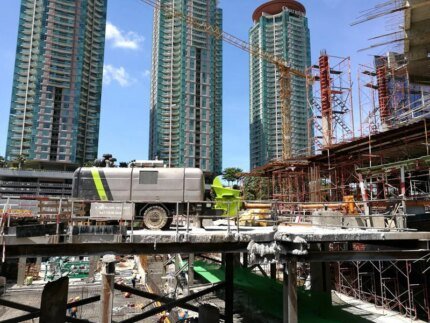

Ideal for residential buildings, commercial construction, bridges, tunnels, and infrastructure projects requiring continuous concrete pouring. Its compact design and high mobility make it suitable for both urban and rural construction sites.
Performance Highlights
The HBT6013V features a 0.6m3 hopper capacity and 1400mm loading height, compatible with most concrete mixers. The Rexroth A11VLO130 main pump (130ml/r displacement) ensures powerful and consistent concrete delivery, while the 400L hydraulic oil tank maintains optimal system temperature.
Quality Assurance
Built with premium components including Weichai engine and Rexroth hydraulic system, this pump undergoes strict quality testing to ensure durability and long service life. The open hydraulic system design allows for easy maintenance and reduced downtime.
FAQ
Q: What is the maximum concrete slump this pump can handle?
A: 80-230 mm, suitable for most standard concrete mixes.
Q: What is the weight of the machine?
A: 6900 kg, ensuring stable operation during pumping.
Q: What power source does it use?
A: Diesel engine with 118kw rated power, suitable for off-grid construction sites.
Ready to enhance your construction efficiency? Contact us today for pricing and technical details to meet your project requirements.
