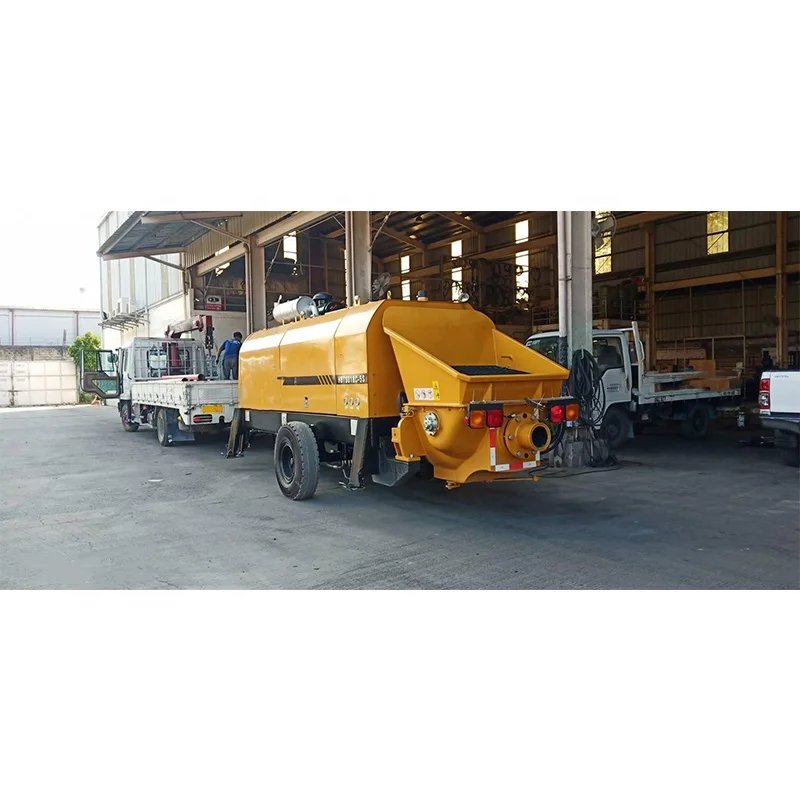

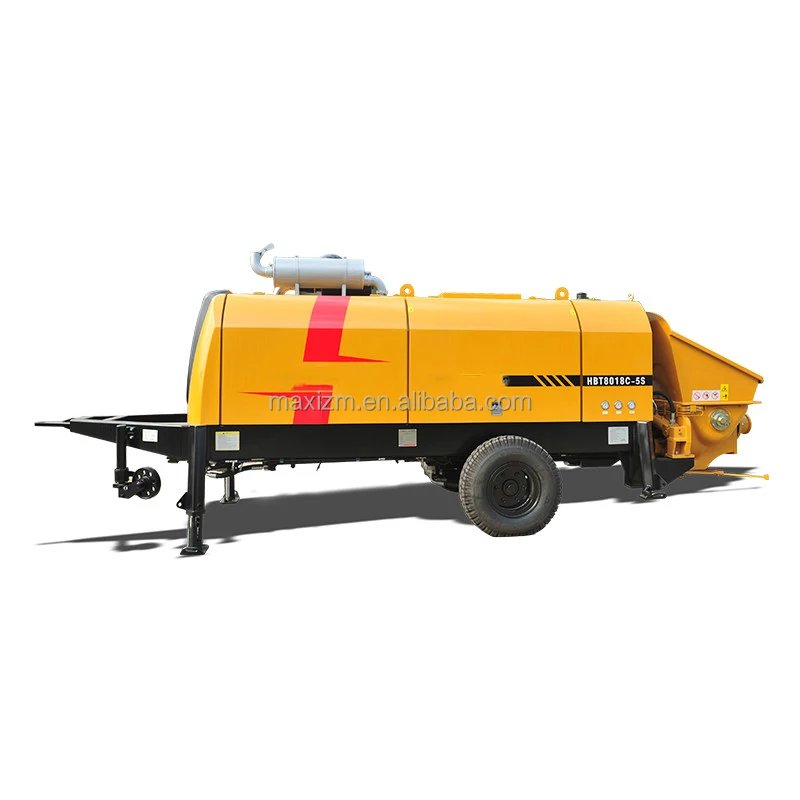

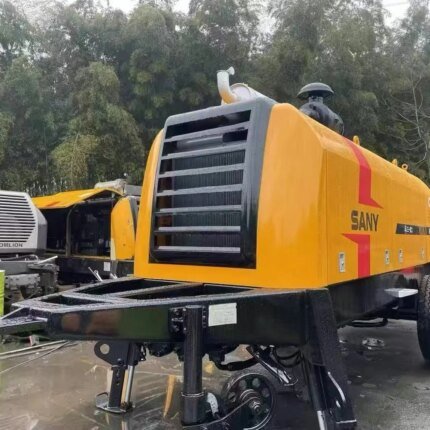

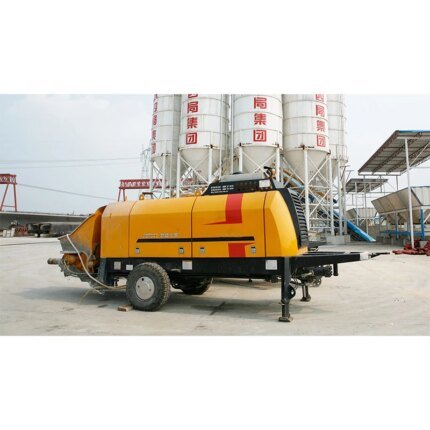

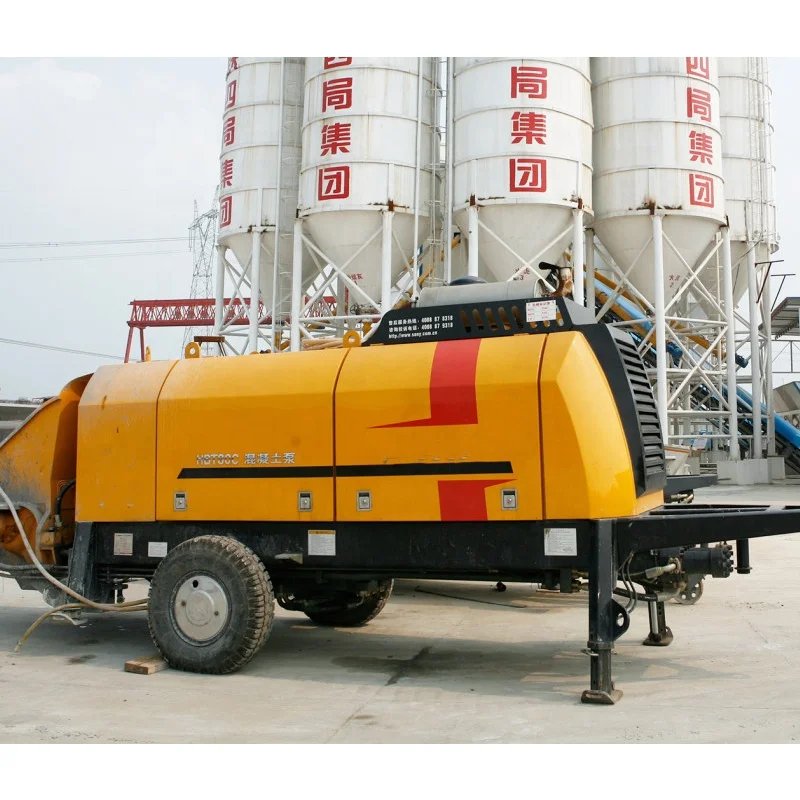

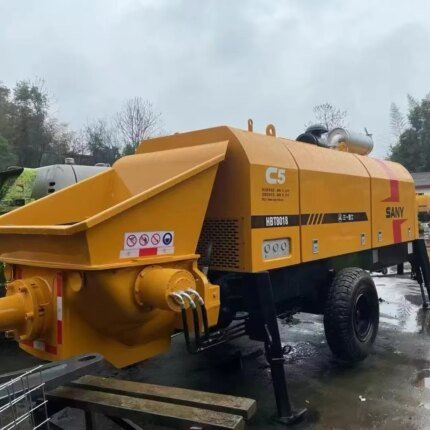

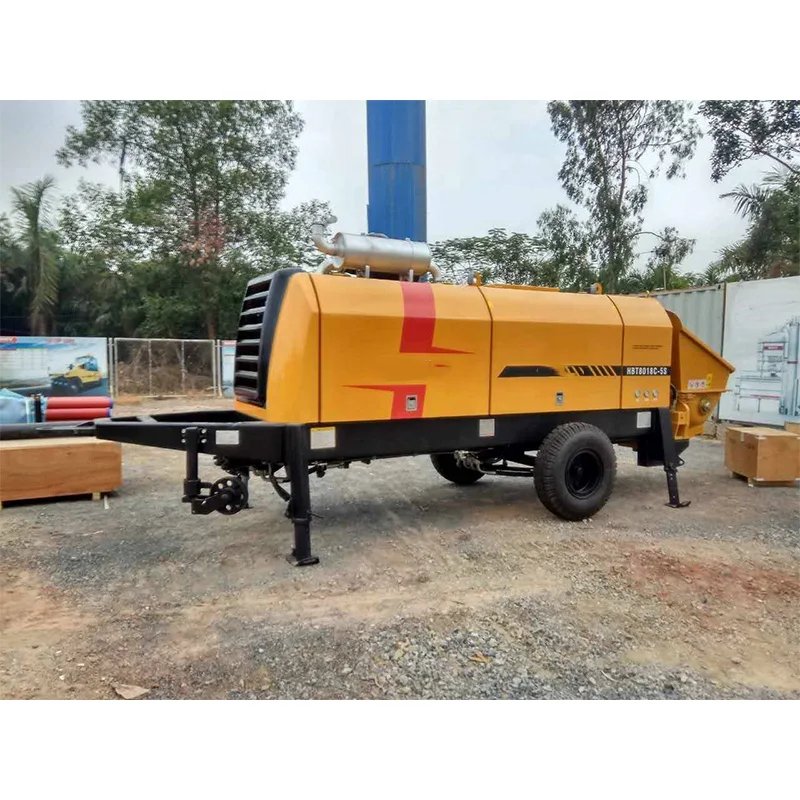

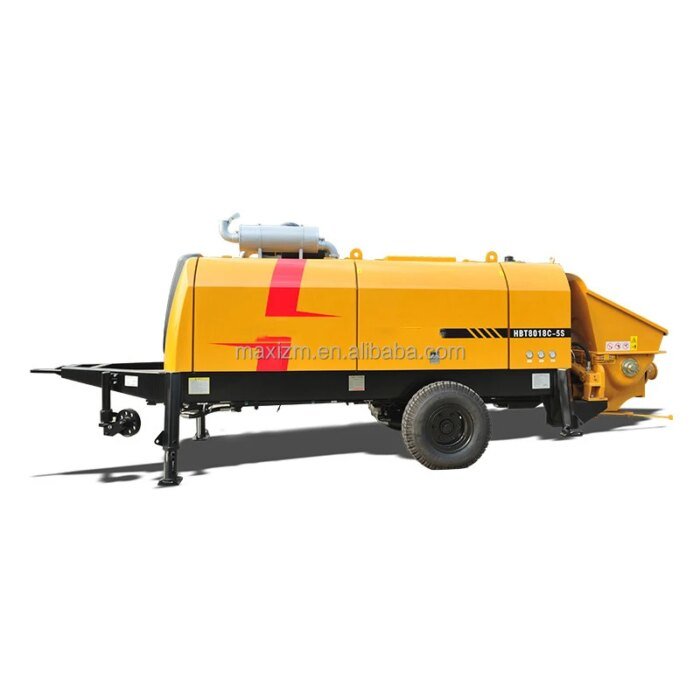

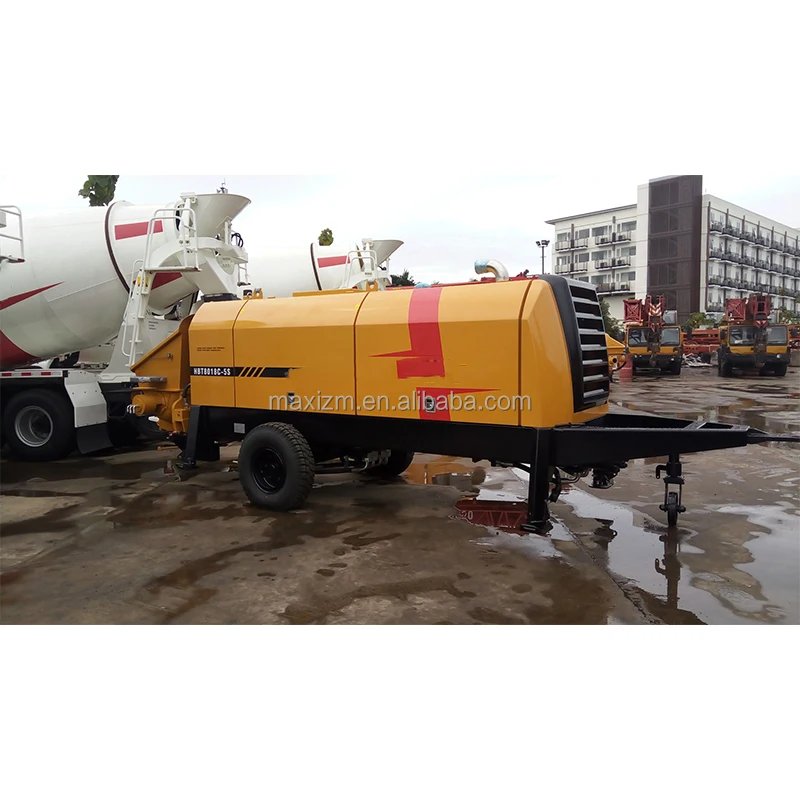

HBT8018C-10S 85m3/h Trailer Concrete Pump Euro 4 Engine
Product Introduction
HBT8018C-10S trailer-mounted concrete pump with Euro 4 engine offers max output 85m3/h, self-diagnosis tech, energy-saving, wear-resistant parts, and wide adaptability (-22¡ãC to 55¡ãC).
Key Parameters
| Rated Power | 180kW |
| Max. Output | 85/50 m3/h (Low/High pressure) |
| Max. Pressure | 10/18 Mpa (Low/High pressure) |
| Dimensions | 7330¡Á2125¡Á2685 mm |
| Gross Weight | 7300 kg |
HBT8018C-10S 85m3/h Trailer-Mounted Concrete Pump with Euro 4 Engine
Power through construction projects with the HBT8018C-10S trailer-mounted concrete pump, engineered to deliver 85m3/h of concrete with precision and efficiency. Equipped with advanced self-diagnosis technology, this pump minimizes downtime by monitoring status and diagnosing over 50 faults in real time, reducing troubleshooting by 70%. Its Euro 4 engine ensures compliance with emission standards, while energy-saving tech cuts fuel consumption by 25%¡ªideal for cost-conscious operations.
Core Specifications
| Rated Power | 180kW |
| Max. Output (Low/High Pressure) | 85/50 m3/h |
| Max. Pressure (Low/High) | 10/18 Mpa |
| Delivery Cylinder | ¦µ200¡Á1800 mm |
| Hopper Capacity/Feeding Height | 0.7m3 / 1420mm |
| Dimensions (L¡ÁW¡ÁH) | 7330¡Á2125¡Á2685 mm |
| Gross Weight | 7300 kg |
| Aggregate Size (¦µ150mm Pipe) | 50 mm |
| Concrete Slump Range | 100~230mm |
| Valve Type | S valve |
Key Advantages
- Energy Efficiency: Automatic engine power adjustment reduces fuel use by 25%.
- Durable Components: Wear-resistant discharge port, cutting ring, and piston extend service life.
- All-Weather Performance: Operates in -22¡ãC to 55¡ãC, with 12-hour continuous runtime.
- Versatile Pumping: Handles B90/C150 concrete, 3-gradation mixes, silt, and mortar.
Applications
Perfect for high-rise buildings, bridges, tunnels, and industrial projects. Its trailer-mounted design ensures easy transportation between job sites, while adaptability to extreme conditions makes it suitable for global construction environments.
Quality Assurance
Manufactured with high-tech materials and strict quality control, this pump meets international standards. Backed by 15+ years of export experience, our team ensures reliable performance and responsive support.
FAQ
Q: What is the maximum aggregate size it can handle?
A: 50mm with ¦µ150mm delivery pipe, 40mm with ¦µ125mm pipe.
Q: How does the self-diagnosis system work?
A: It monitors pump status in real time and alerts on over 50 potential faults, reducing maintenance time.
Q: Is it suitable for cold climates?
A: Yes, it operates reliably from -22¡ãC to 55¡ãC.
Ready to boost your construction efficiency? Contact us today for pricing and technical details!
