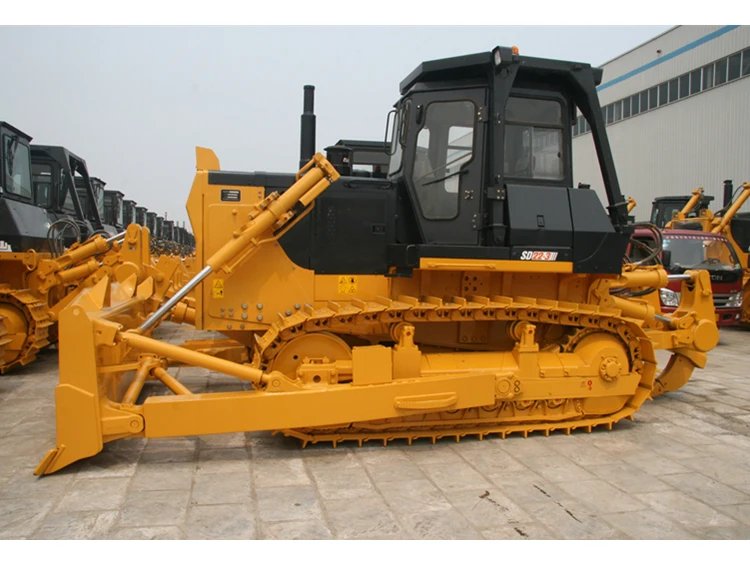

SD22 Bulldozer 220HP Hydraulic High-Efficiency Heavy Machine
Product Introduction
SD22 Bulldozer: 220HP hydraulic heavy machine with self-developed durable chassis and drive system. Features ergonomic cab, straight tilt blade, and three-tooth ripper option for diverse conditions like clay and frozen soil.
Key Specifications
| Power | 220HP |
| Travel Speed | 0~9 km/h (Forward/Reverse) |
| Blade Capacity | 1.93 m3 |
| Track Shoe Width | 460 mm |
| Hydraulic System Pressure | 21 MPa |
SD22 Bulldozer: 220HP Hydraulic High-Efficiency Heavy Machine
The SD22 Bulldozer is a powerful 220HP hydraulic heavy equipment designed for high-efficiency performance in demanding work environments. Equipped with core parts and a self-developed chassis and drive system, it delivers exceptional durability and traction. The ergonomic hexahedral cab ensures operator comfort, while the open side guard andºÏÀí²¼¾Ö of components simplify maintenance. Its straight tilt blade and optional three-tooth ripper provide superior adaptability to various conditions like clay and frozen soil.
Core Parameters
| Engine Power | 220HP |
| Transmission Type | Electronic control |
| Travel Speed | 0~9 km/h (forward/reverse) |
| Track Shoe Width | 460 mm |
| Blade Type | VPAT-blade |
| Dozing Capacity | 1.93 m3 |
| Blade Width | 2680 mm |
| Hydraulic System Pressure | 21 MPa |
| Carrier Rollers | 1 each side |
| Track Rollers | 6 each side |
Applications
Ideal for construction, mining, road building, and agricultural projects. Excels in handling clay, hardened frozen soil, and other challenging terrains. Suitable for site preparation, grading, and material movement in diverse working conditions.
Key Performance
- Self-developed drive system with proven durability and strong traction
- Ergonomic cab design for spacious interior and wide field of view

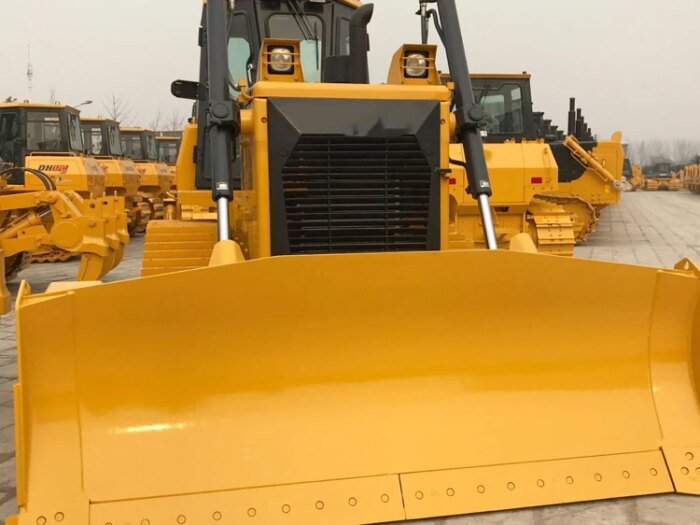

- Straight tilt blade for enhanced cutting force

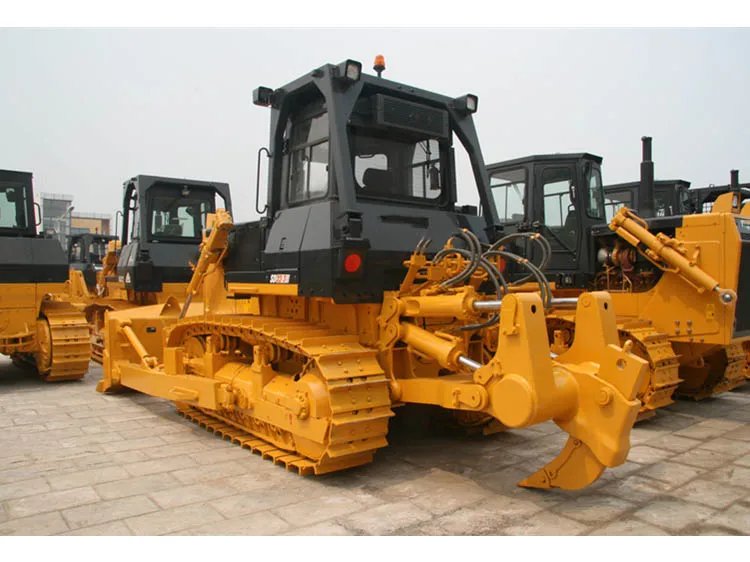

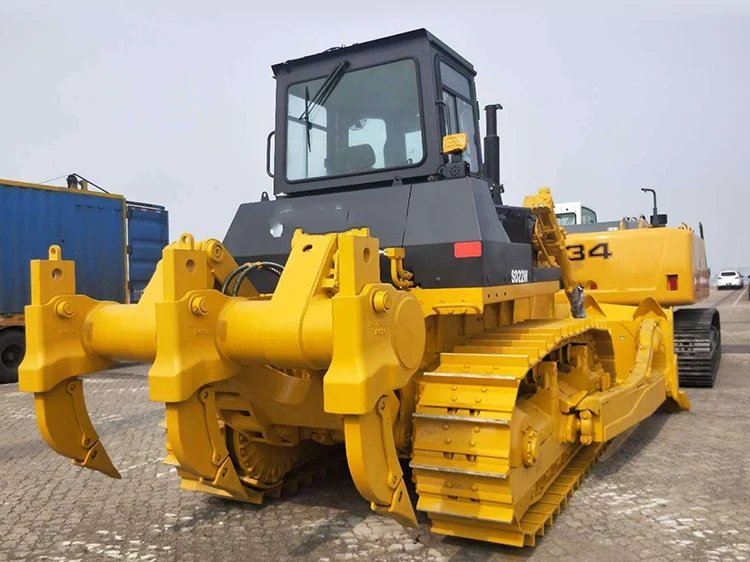

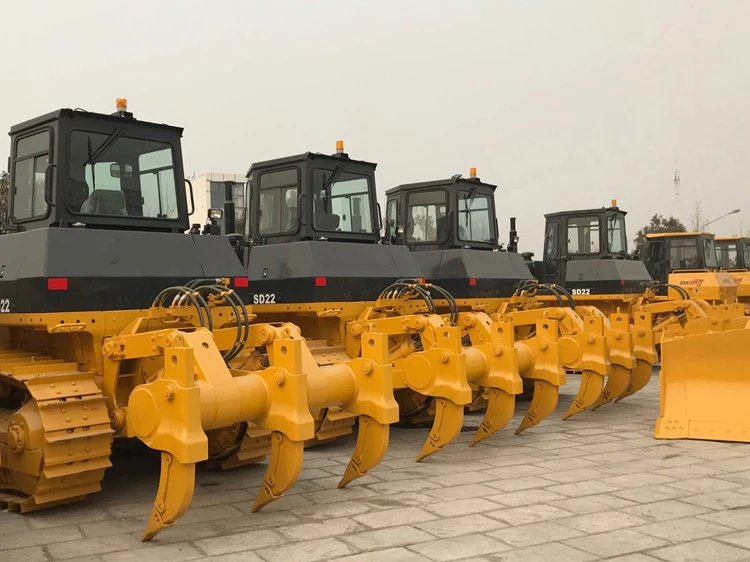

- Optional three-tooth ripper for versatile operation
- Easy maintenance with accessible filter elements and hydraulic components
Quality Assurance
One-year or 2000-hour warranty covering material and workmanship defects. Free repair or replacement of defective parts during warranty period. Two shipping options for spare parts: urgent international courier (client covers cost) or with next machine shipment (free shipping).
FAQ
Q: What is the warranty coverage?
A: 12 months or 2000 hours, covering material and workmanship defects under normal operation.
Q: Can the bulldozer handle frozen soil?
A: Yes, with the optional three-tooth ripper, it adapts to hardened frozen soil and clay.
Q: How many track rollers does it have?
A: 6 track rollers on each side for stable operation.
Interested in the SD22 Bulldozer? Contact us now for a personalized quote and more details!
