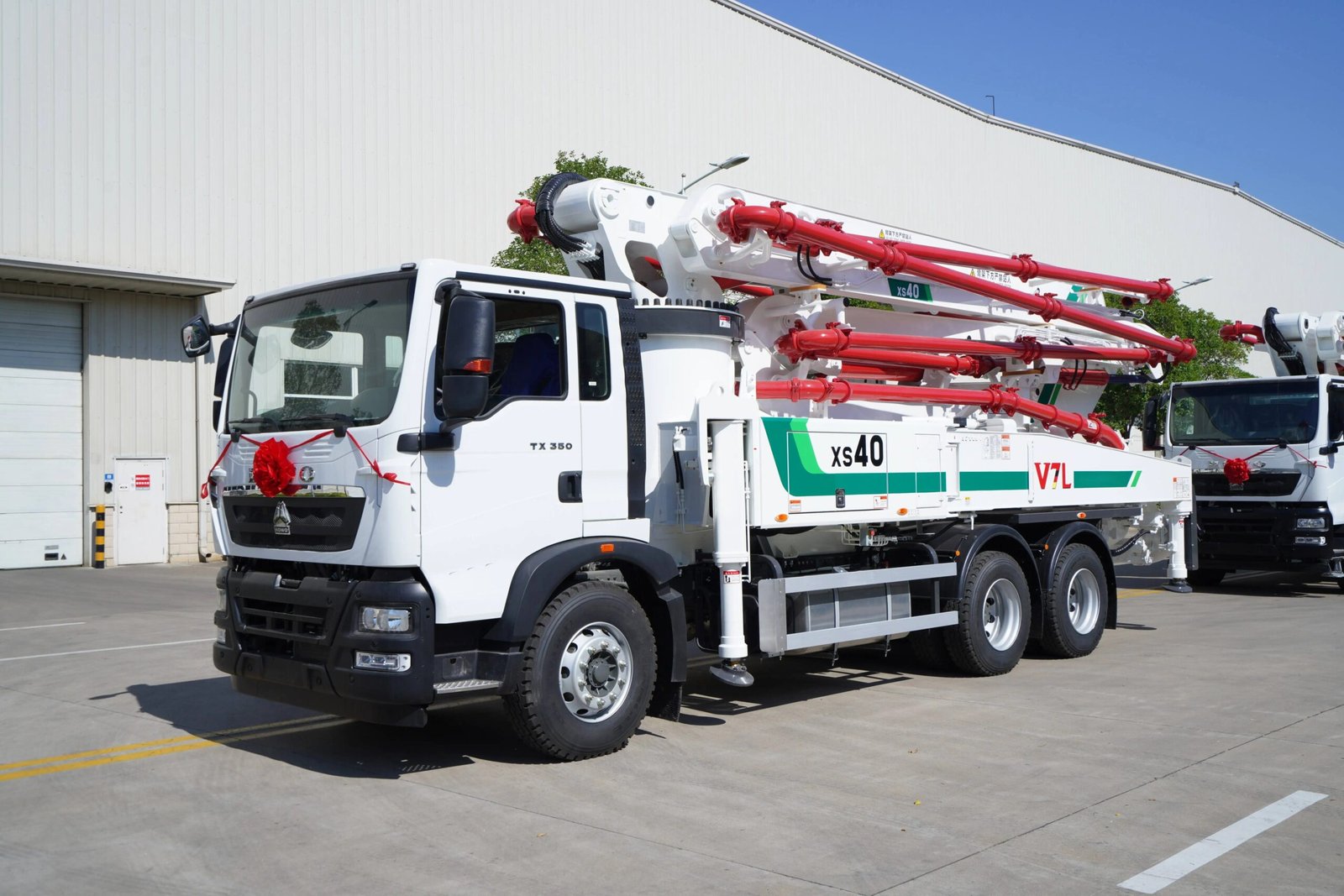

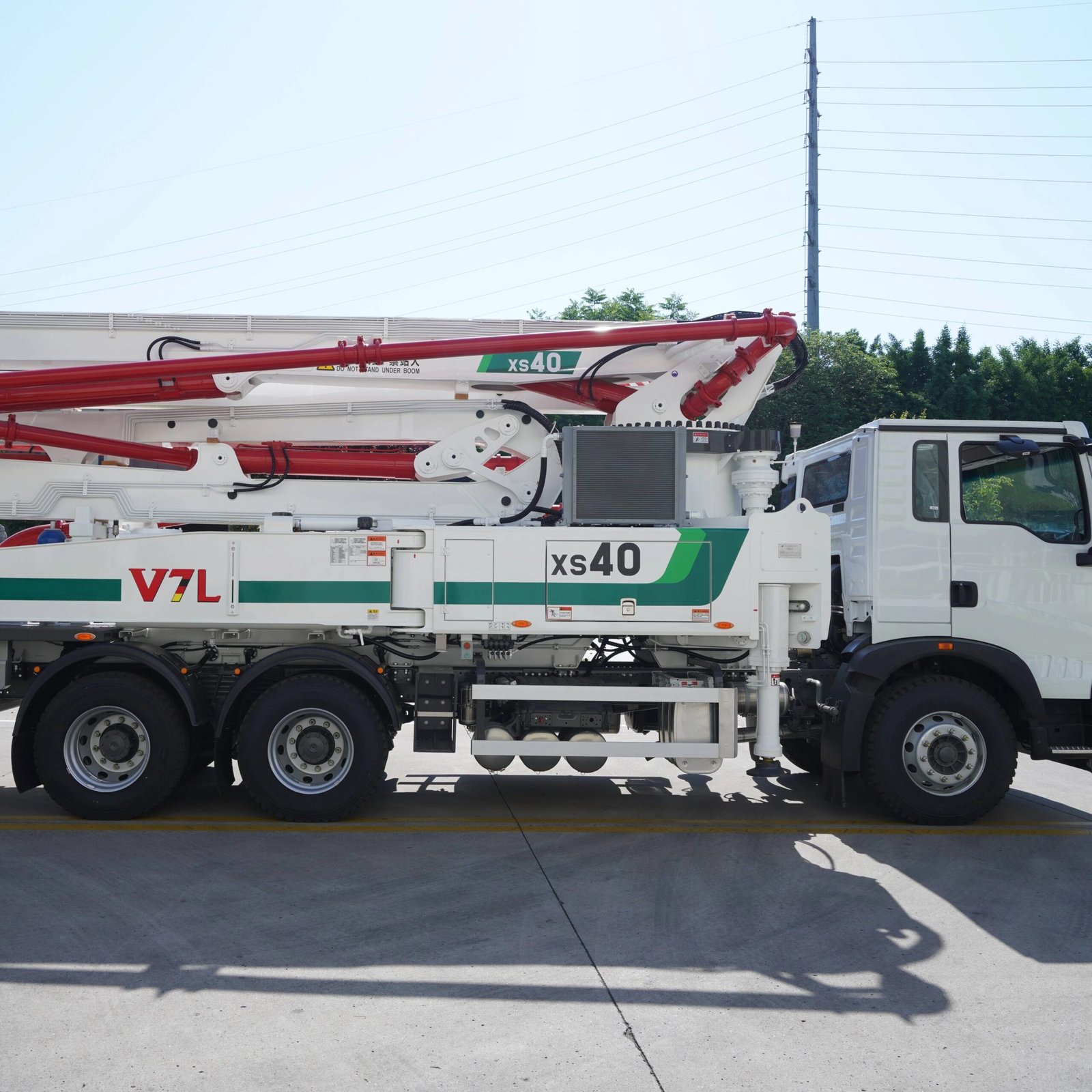

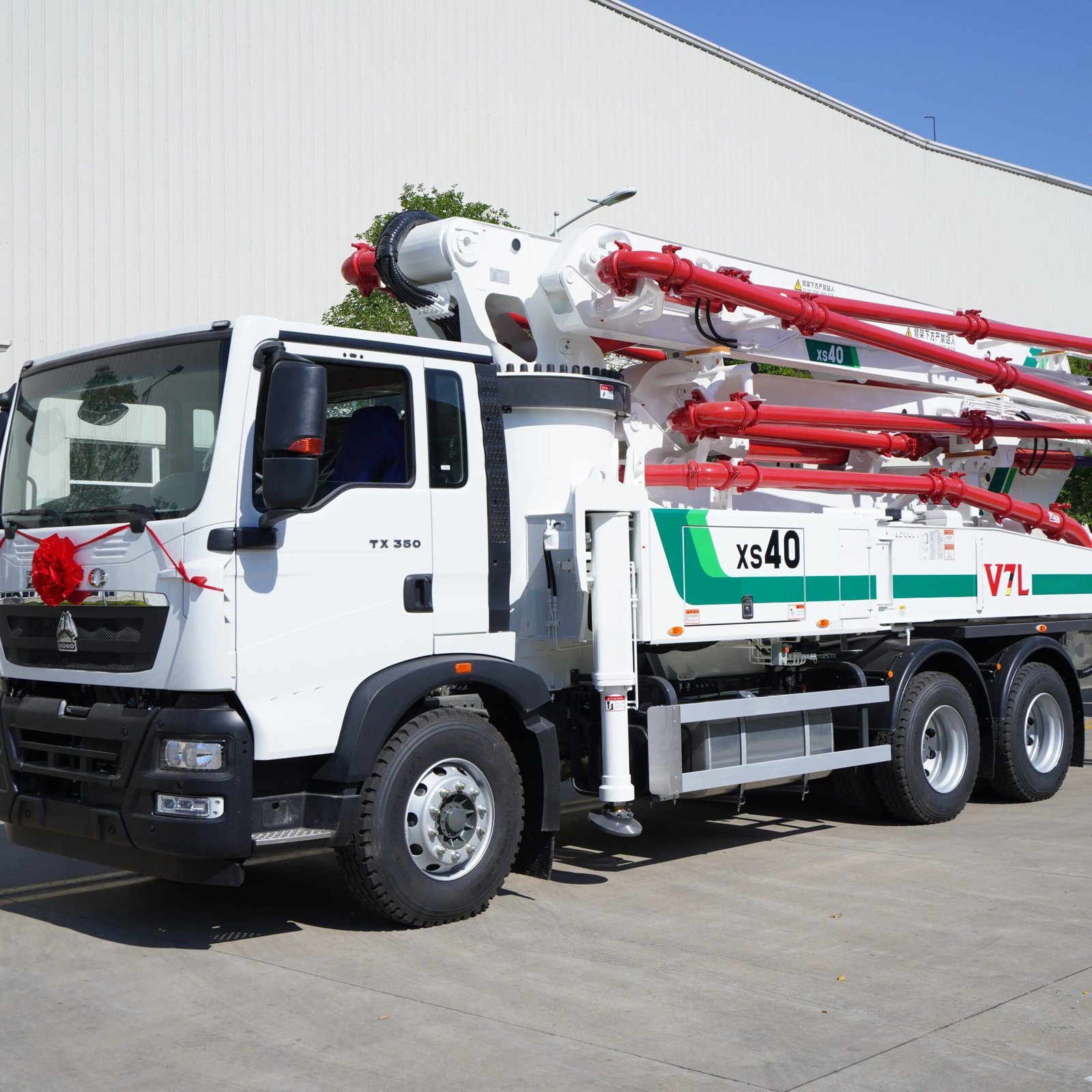

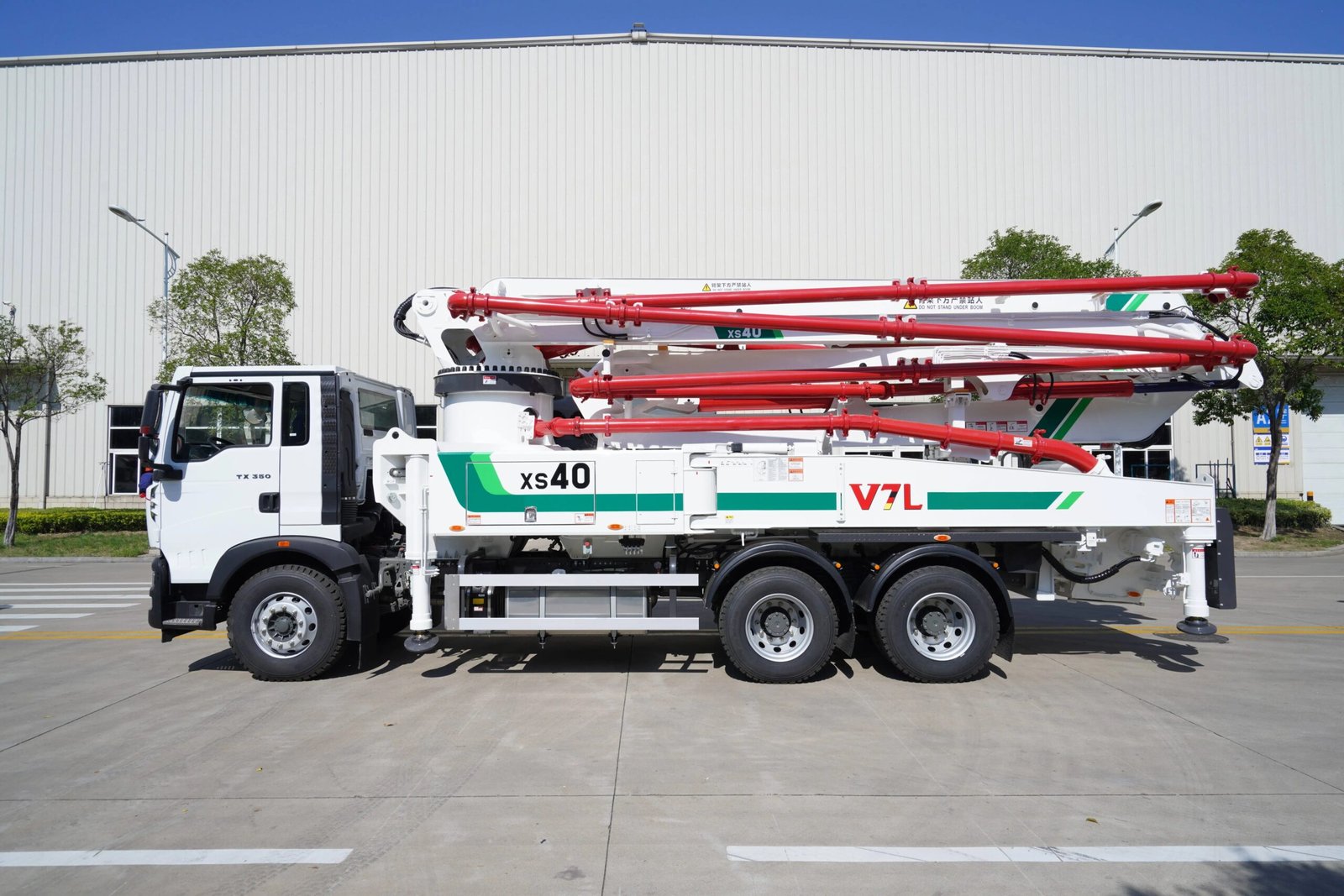

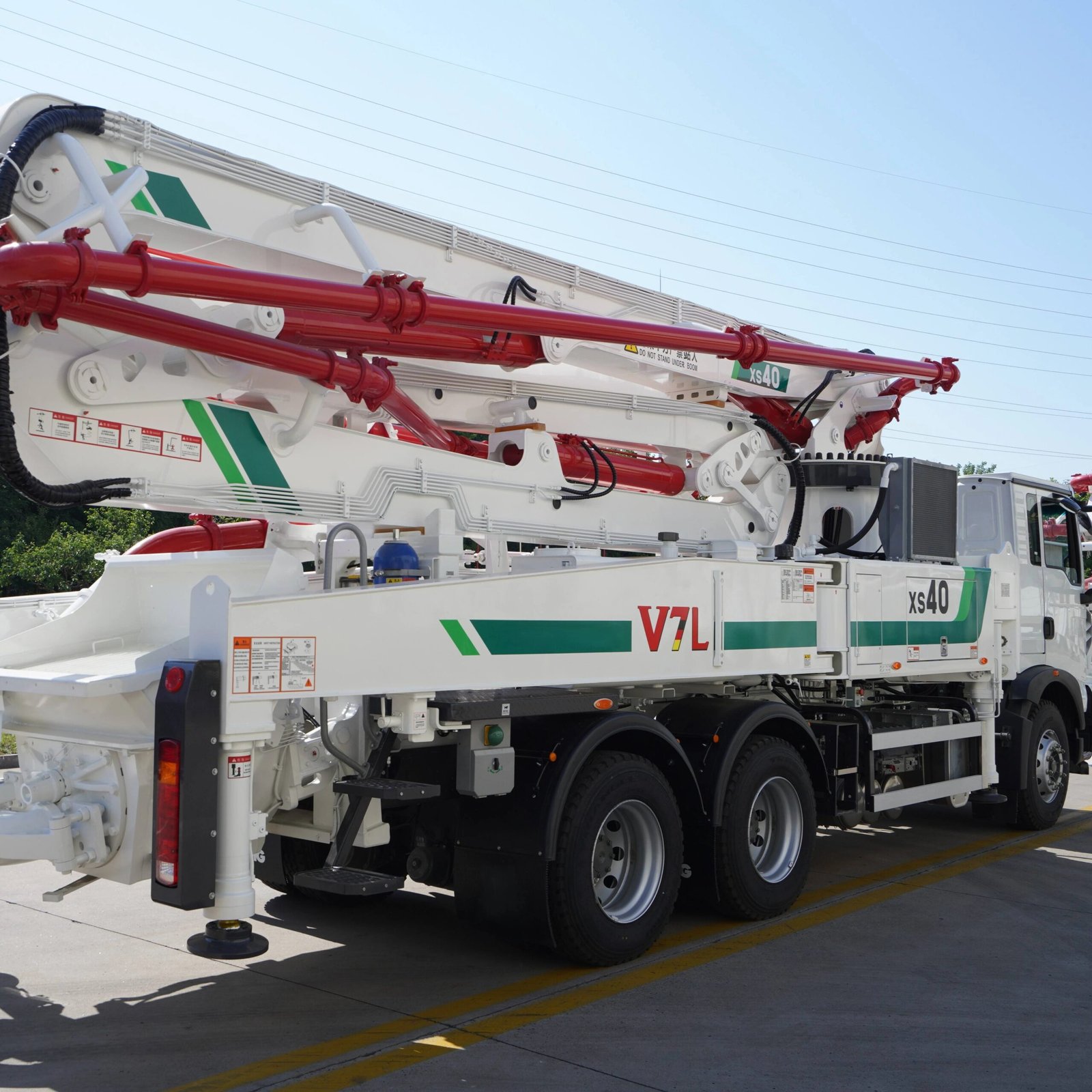

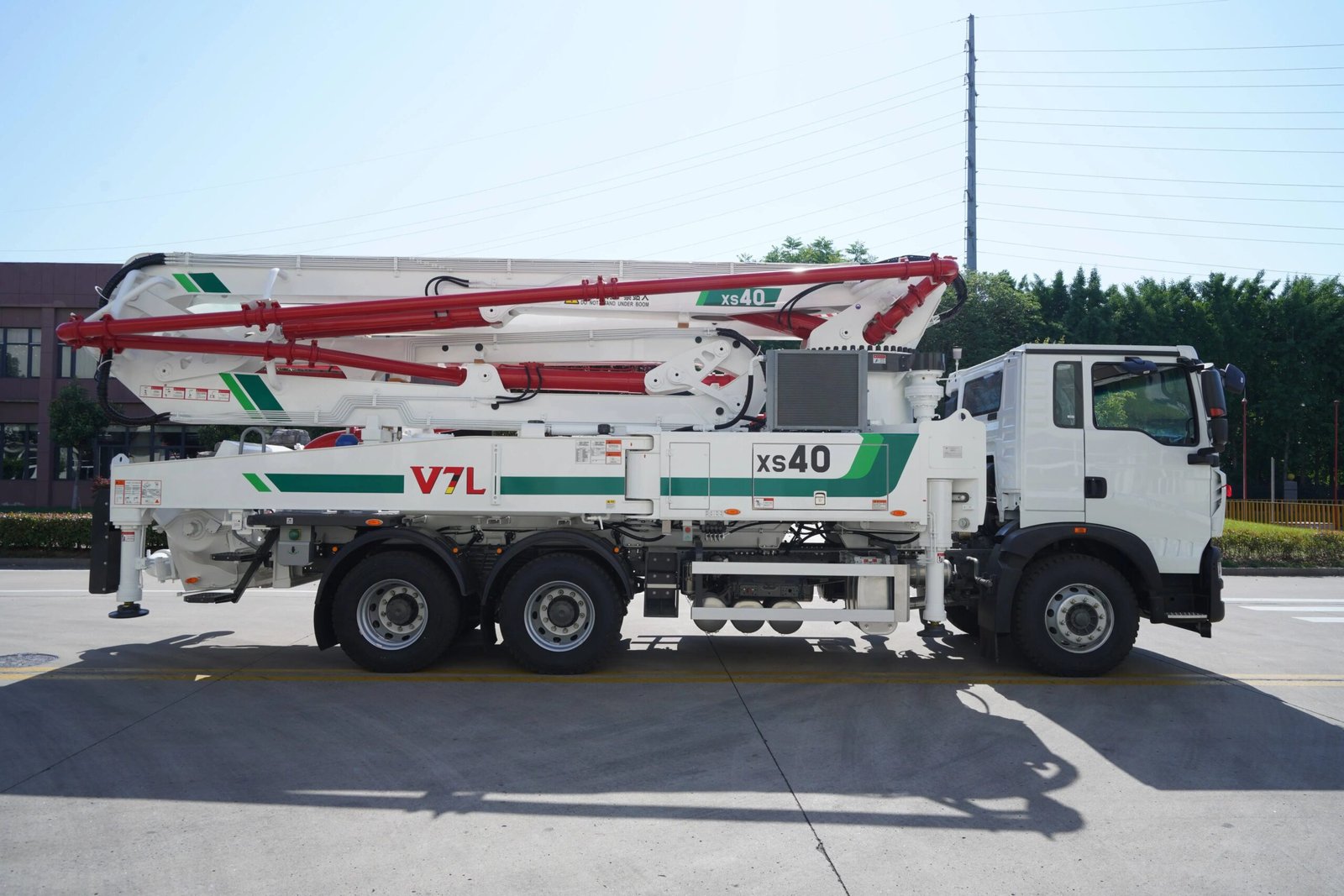

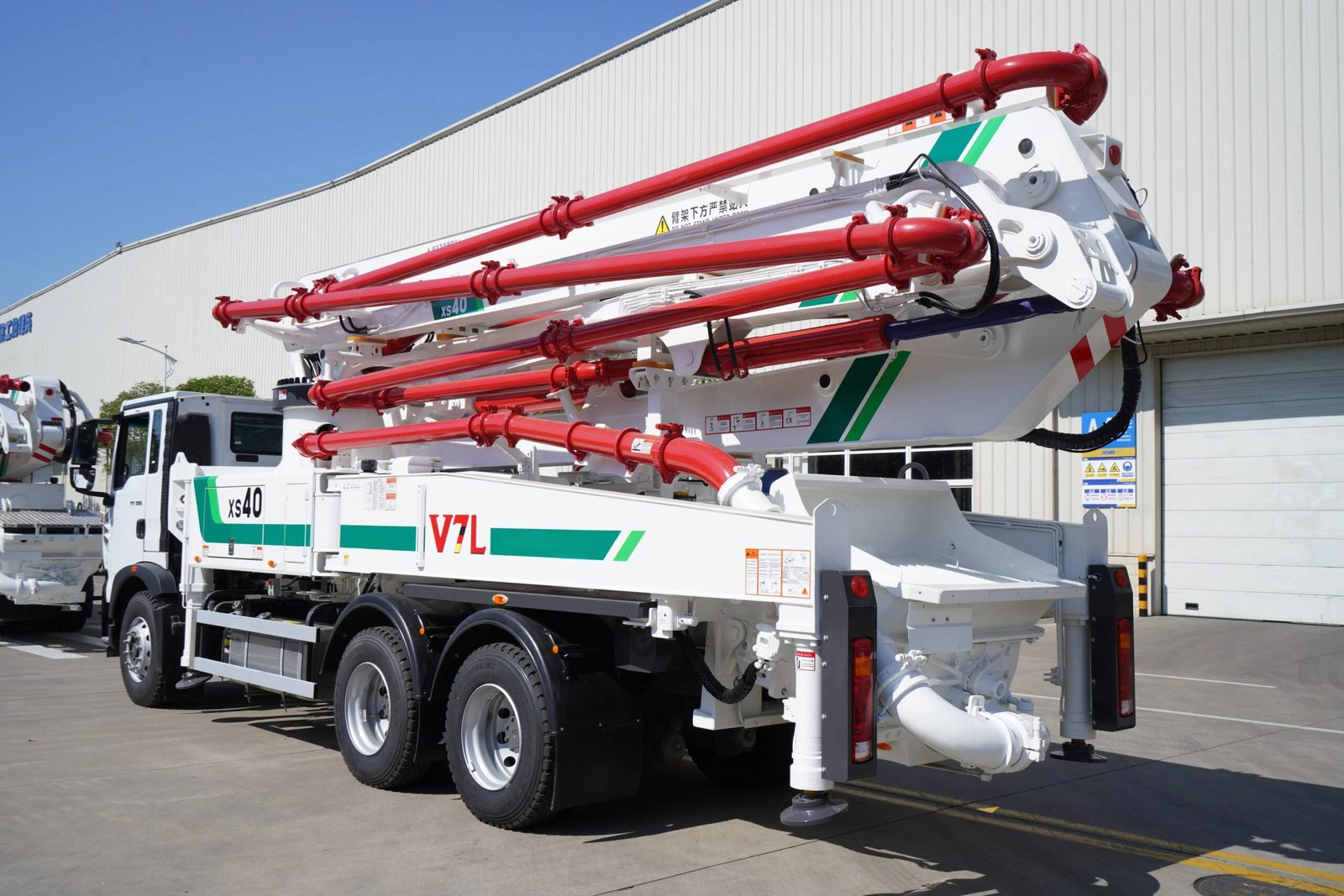

XS40 52m Concrete Pump Truck 115m3/h 5-Section Boom
Product Introduction
Concrete Pump Truck XS40 with 5 Section Boom, offering 115m3/h output and 39.1m reach height. Efficient, reliable, and powerful for construction projects.
Key Specifications
| Model | XS40 |
| Output | 115 m3/h |
| Boom Sections | 5 Section |
| Reach Height | 39.1 m |
| Engine Power | 257 kW |
High-Performance XS40 52m Concrete Pump Truck ¨C Maximize Your Construction Efficiency
Boost your project productivity with the XS40 Concrete Pump Truck, engineered to deliver 115m3/h output and a 5-section 52m boom for extended reach. Ideal for large-scale construction, this machine combines power, precision, and durability to tackle the toughest concrete placement tasks. Ready to elevate your operations? Inquire now for a tailored quote!
Core Specifications
| Description | Details |
|---|---|
| Output Capacity | 115 m3/h |
| Boom Configuration | 5-Section, 52m Reach |
| Boom Material | High-Strength Steel |
| Pumping System | Double-Hydraulic Cylinder |
| Chassis Compatibility | Heavy-Duty Truck Chassis |
| Max. Concrete Pressure | 16 MPa |
| Hydraulic System | High-Efficiency, Low Noise |
| Control System | Intelligent Remote Control |
| Fuel Type | Diesel |
| Warranty | 12-Month or 2000-Hour |
Key Selling Points
? Unmatched Reach: 52m 5-section boom enables concrete placement in high-rise buildings and large construction sites.
? High Output: 115m3/h pumping capacity reduces project timelines by 30% compared to standard models.
? Durable Build: Reinforced boom and chassis designed for 10,000+ working hours under harsh conditions.
? Precision Control: Remote operation system ensures accurate concrete placement with minimal waste.
? Fuel Efficiency: Optimized engine design cuts fuel consumption by 15% without compromising power.
Applications
Perfect for:
??? High-rise building construction
?? Industrial factory floors
??? Highway and bridge projects
??? Large residential complexes
?Ë®Àû Water conservancy projects
Performance Highlights
The XS40 excels in extreme conditions with a max concrete pressure of 16 MPa, allowing vertical pumping up to 150m. Its advanced hydraulic system ensures smooth boom movement, while the intelligent control panel monitors performance in real-time to prevent overloads. Tests show 98% pumping efficiency even with high-slump concrete.
Quality Assurance
Every unit undergoes 500-hour endurance testing and ISO 9001 quality certification. Key components (boom, hydraulic pump, engine) are sourced from global top brands. We provide on-site installation guidance and 24/7 technical support.
Why Choose XS40 Over Competitors?
? 5% longer boom reach than similar models in its class
? 10% lower maintenance cost due to wear-resistant parts
? Faster setup time (10 minutes vs. industry average 25 minutes)
? Customizable chassis options for global market compliance
FAQ
Q: What is the minimum space required for operation?
A: 8m¡Á6m area for stable boom deployment.
Q: Can it pump lightweight concrete?
A: Yes, compatible with densities from 1800-2400 kg/m3.
Q: How often is maintenance needed?
A: Routine check every 500 hours; major service at 3000 hours.
Q: Is operator training included?
A: Yes, free on-site training for 2 operators per order.
Ready to transform your construction efficiency? Contact us today for pricing, technical details, and export customization options!
