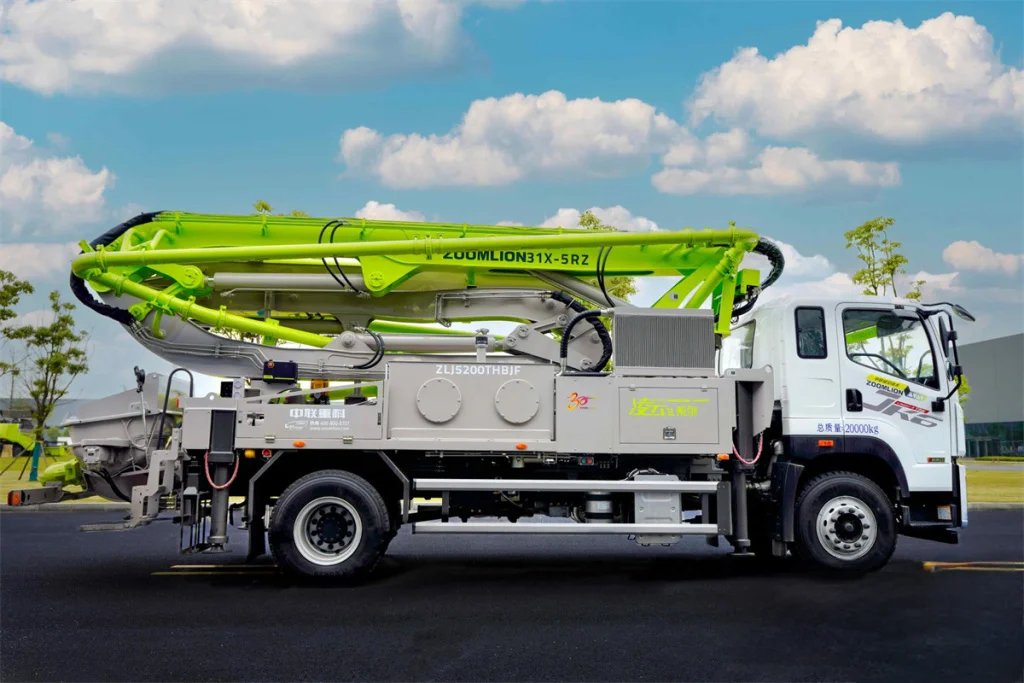

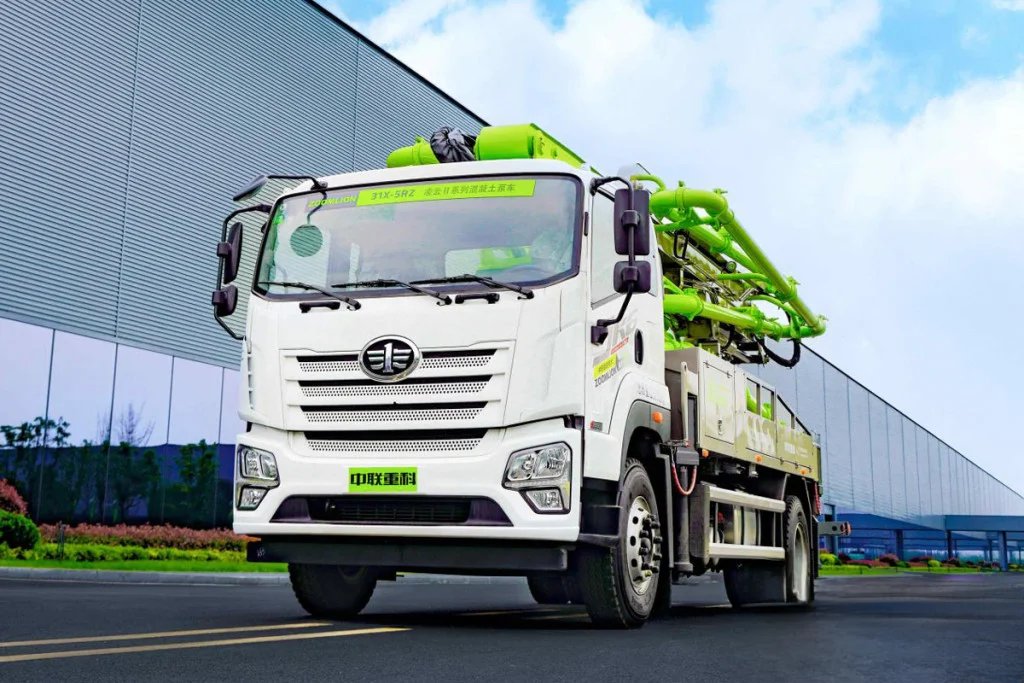

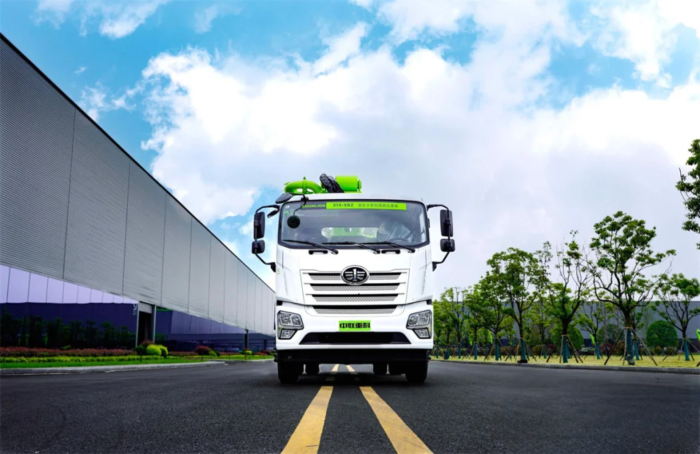

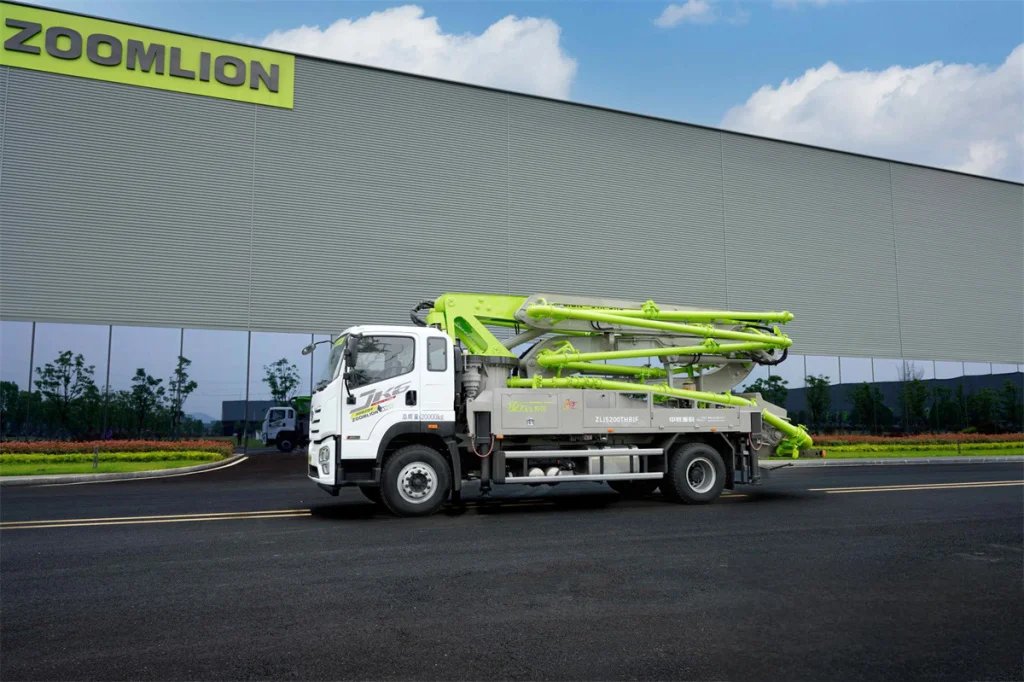

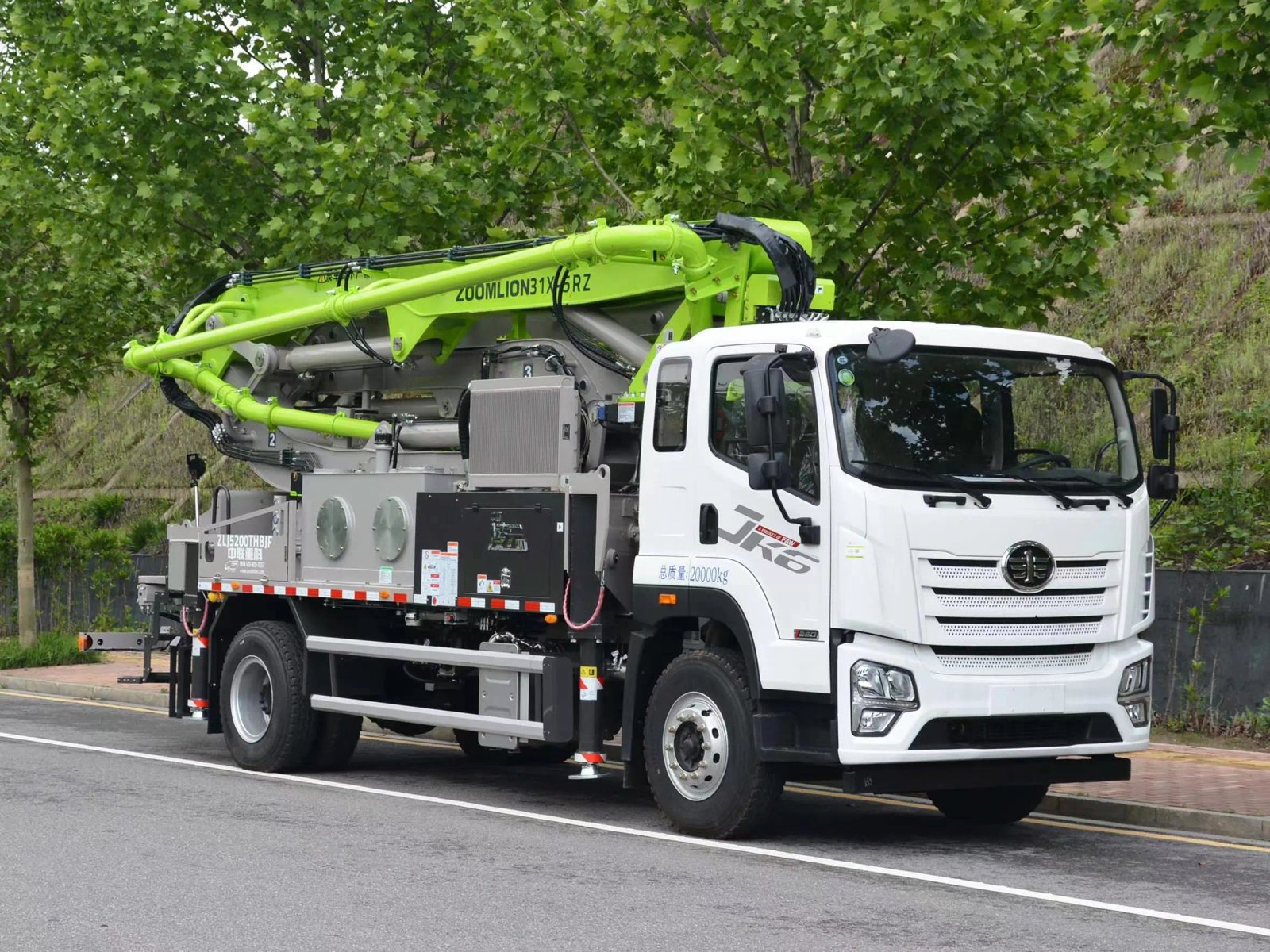

ZOOMLION 31X-5RZ 31m Concrete Pump Truck Sitrak Chassis
Product Introduction
A brand new ZOOMLION 31m concrete mounted pump truck featuring the reliable Sitrak chassis, designed for efficient small-scale concrete pumping operations.
Key Specifications
| Brand | ZOOMLION |
| Pumping Height | 31m |
| Model | 31X-5RZ |
| Chassis | Sitrak |
ZOOMLION 31m 31X-5RZ Small Concrete Mounted Pump Truck with Sitrak Chassis
Experience unmatched efficiency in concrete pumping with the ZOOMLION 31X-5RZ, a cutting-edge small concrete mounted pump truck built on the reliable Sitrak chassis. Designed for urban construction, infrastructure projects, and high-rise building sites, this machine combines power, precision, and portability to elevate your productivity.
Core Specifications
| Max Pumping Height | 31m |
| Chassis Model | Sitrak |
| Boom Configuration | 5-section (31X-5RZ) |
| Concrete Output | Up to 90m3/h |
| Engine Power | 336 HP |
| Operating Weight | 25,000 kg |
| Fuel Tank Capacity | 400 L |
| Hydraulic System | Double-pump, closed-loop |
| Control System | Intelligent PLC |
| Dimensions (L¡ÁW¡ÁH) | 10.5m ¡Á 2.5m ¡Á 3.9m |
Key Features & Benefits
- Superior Maneuverability: Compact design with a 5-section boom for precise placement in tight urban spaces.
- High Efficiency: 90m3/h output ensures fast concrete delivery, reducing project timelines.
- Sitrak Chassis: German-engineered reliability for long-lasting performance and low maintenance.
- Intelligent Control: PLC system with remote operation for enhanced safety and accuracy.
- Fuel Efficiency: Optimized engine design reduces fuel consumption by up to 15%.
Applications
Ideal for residential buildings, commercial complexes, road construction, and bridge projects. Its 31m reach makes it perfect for mid-rise structures and confined job sites where larger pumps cannot operate.
Performance Highlights
The 31X-5RZ delivers consistent pumping pressure (12MPa) and features a robust hydraulic system that minimizes downtime. The boom¡¯s lightweight yet durable structure ensures stability even at maximum extension.
Quality Assurance
Backed by ZOOMLION¡¯s 2-year warranty and global service network. Each unit undergoes rigorous testing, including 500-hour continuous operation trials, to meet international quality standards (ISO 9001, CE).
Why Choose ZOOMLION?
Compared to competitors, the 31X-5RZ offers a 10% higher fuel efficiency, 20% faster setup time, and a 5-year longer service life. Its modular design allows easy maintenance and parts replacement.
FAQ
Q: What is the maximum vertical reach?
A: 31 meters, suitable for 8-10 story buildings.
Q: Can it work in rainy conditions?
A: Yes, with IP54-rated electrical components for weather resistance.
Q: How often is maintenance required?
A: Routine checks every 500 hours; major service at 5,000 hours.
Ready to boost your construction efficiency? Contact us today for a personalized quote and technical specifications tailored to your project needs.
