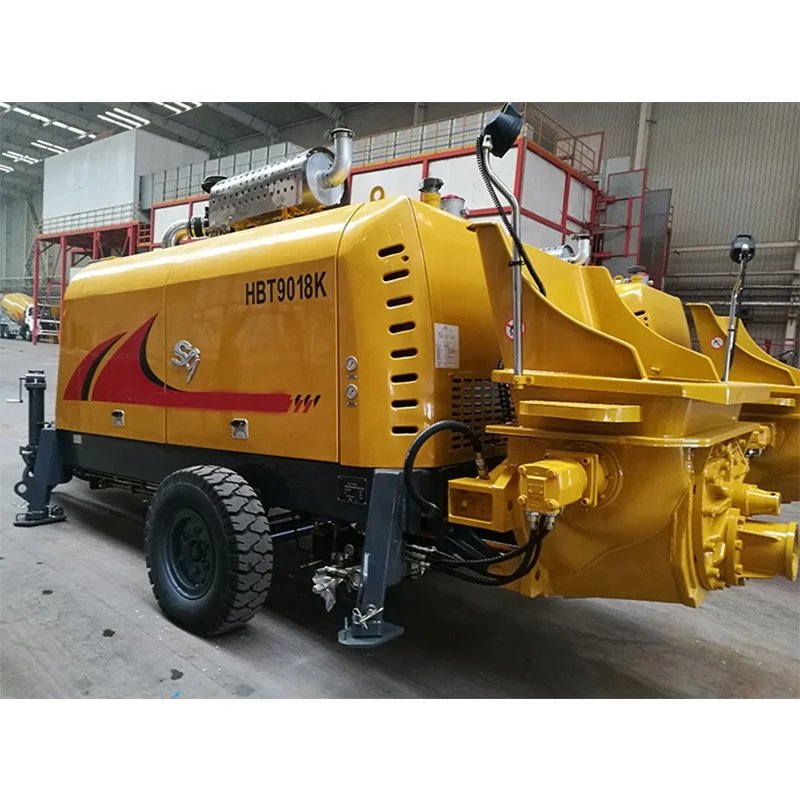

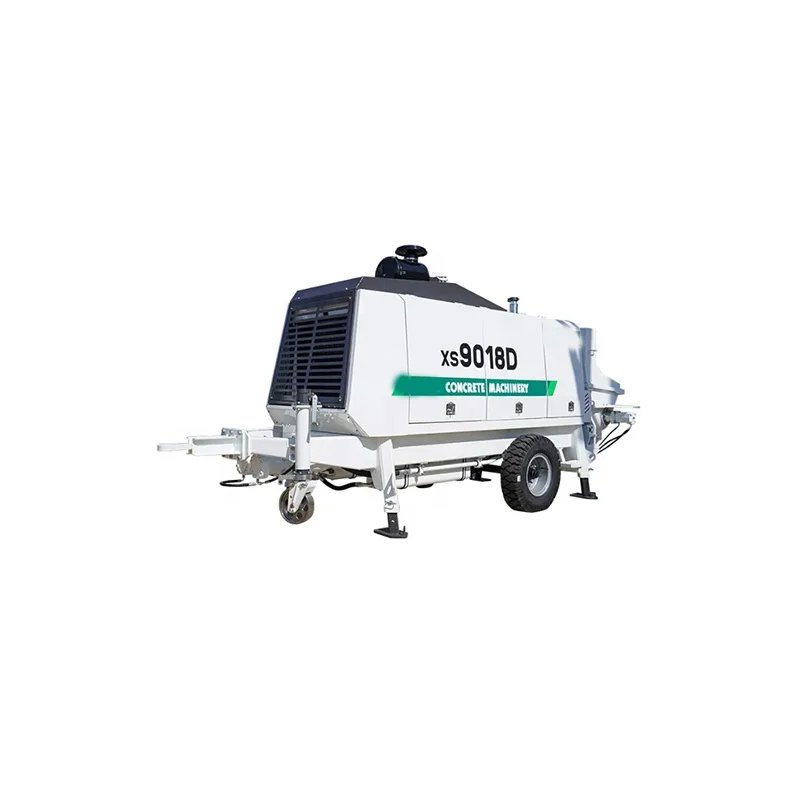

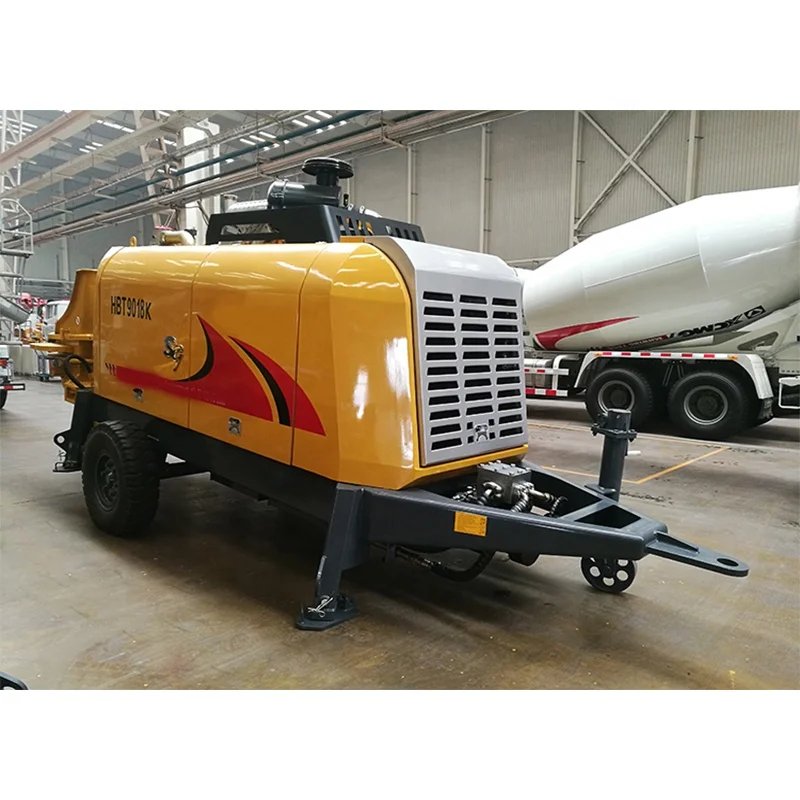

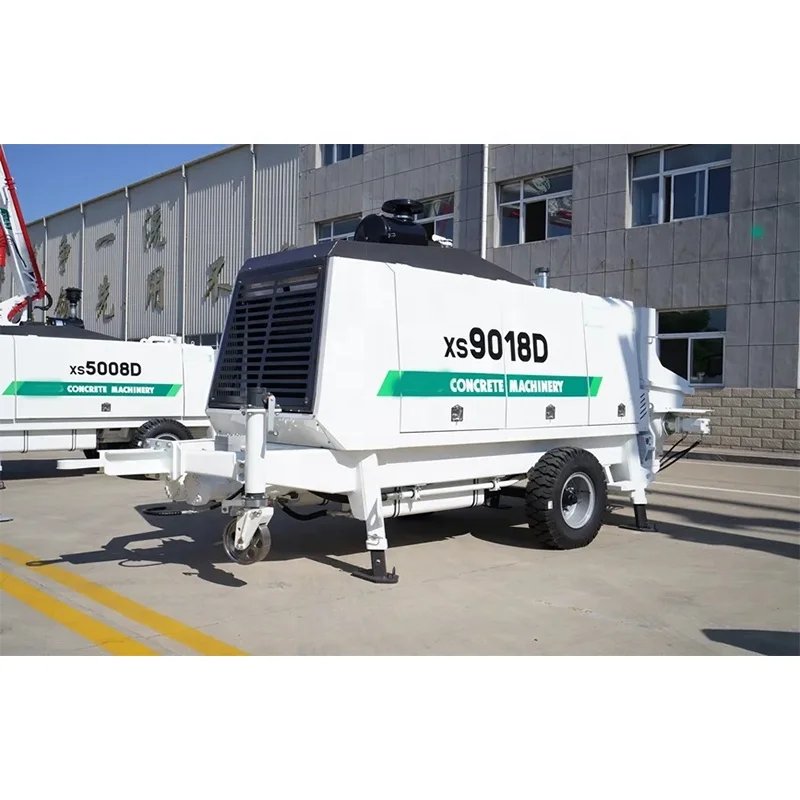

95m3/h Diesel Concrete Pump XS9018D HBT9018K
Product Introduction
China 95m3/h Diesel Trailer-Mounted Concrete Pump XS9018D HBT9018K features efficient S-valve pumping technology, multi-stage filtration, and automatic piston return for reliable construction operations.
Key Parameters
| Item | Value |
| Theoretical Output | 95/55 m3/h |
| Engine Model | MC07.28T30 / WP7G270E300 |
| Rated Power | 206/199 kw |
| Total Weight | 8000 kg |
| Outline Dimension | 6439¡Á2090¡Á2900 mm |
China 95m3/h Diesel Trailer-Mounted Concrete Pump XS9018D HBT9018K
Maximize your construction efficiency with our high-performance diesel trailer-mounted concrete pump. Engineered for reliability and power, this pump delivers exceptional output and pressure to handle even the most demanding job sites. Whether you’re working on large-scale infrastructure projects or commercial buildings, this machine ensures smooth concrete placement with minimal downtime.
Core Specifications
| Item | Value |
| Theoretical Output | 95/55 m3/h |
| Theoretical Pressure | 10/18 MPa |
| Engine Model | MC07.28T30 / WP7G270E300 |
| Rated Power | 206/199 kw |
| Total Weight | 8000 kg |
| Dimensions | 6439¡Á2090¡Á2900 mm |
| Piston Size | ¦Õ230¡Á1600 mm |
| Emission Standard | Euro III |
| Valve System | S-valve (rock-valve optional) |
| Filtration | Multi-stage filtration system |
Key Advantages
- Efficient S-valve pumping technology for reliable performance and low maintenance
- Large diameter oil passages reduce pressure loss and minimize fuel consumption
- Advanced reversing system minimizes wear and extends component lifespan
- Automatic piston return function for quick seal inspection and replacement
- Robust construction designed for heavy-duty continuous operation

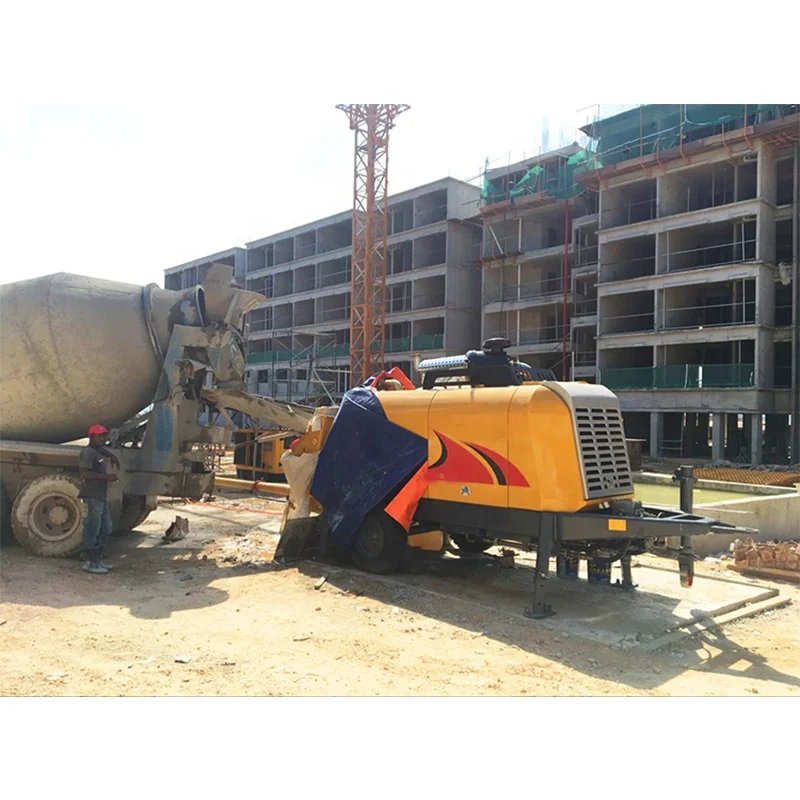

Application Scenarios
Ideal for high-rise building construction, bridge projects, tunnel engineering, and large-scale residential developments. The trailer-mounted design ensures excellent mobility between job sites, while the powerful engine and high-pressure capabilities handle long-distance concreteÊäËÍ with ease.
Performance Highlights
Equipped with dual operating modes (95m3/h @ 10MPa or 55m3/h @ 18MPa), this pump adapts to different concrete mixtures and delivery requirements. The multi-stage filtration system protects critical components from contamination, ensuring consistent performance even in harsh working environments.
Quality Assurance
Manufactured by Maxizm Construction Machinery, a trusted name with 17+ years of experience exporting construction equipment worldwide. Each unit undergoes rigorous testing to meet international quality standards, backed by comprehensive after-sales support.
FAQ
Q: What type of concrete can this pump handle?
A: Suitable for standard concrete mixtures, including aggregates up to specified sizes (contact for detailed specifications).
Q: Is on-site training available?
A: Yes, our technical team provides operational training and maintenance guidance.
Q: What is the expected service life?
A: With proper maintenance, the pump delivers reliable service for 8-10 years under normal operating conditions.
